ASEK-35-INT-03
The ASEK-35-INT-03 is a prototyping interface board designed to provide easy access to ASEK-35 programmer signals through clearly labeled solder pads. It provides a flexible hardware platform for rapid development, evaluation, and signal access during sensor bring-up and application prototyping. In combination with the ASEK-35 programmer, it supports efficient communication, and evaluation of programmable current sensors.
Product Details
Product Details
Top Features
Supported Sensors
A1367 - KT (SIP4)ACS37503 - KT (SIP4)
ACS37600 - LU (TSSOP8)
ACS37600K - OK (SIP4)
ACS37601 - KT (SIP4)
ACS37610-1 - LU (TSSOP8), OK (SIP4)
ACS37630 - OL (SOIC8)
ACS70310-11 - KT/OK (SIP4)
ACS70312 - KT (SIP4)
CT455 - LU (TSSOP8)
CT456 - LU (TSSOP8)
Documentation
ASEK-35 Hardware Selection Guide
ASEK-35 Software User Guide
ASEK-35 Programmer User Guide
Content

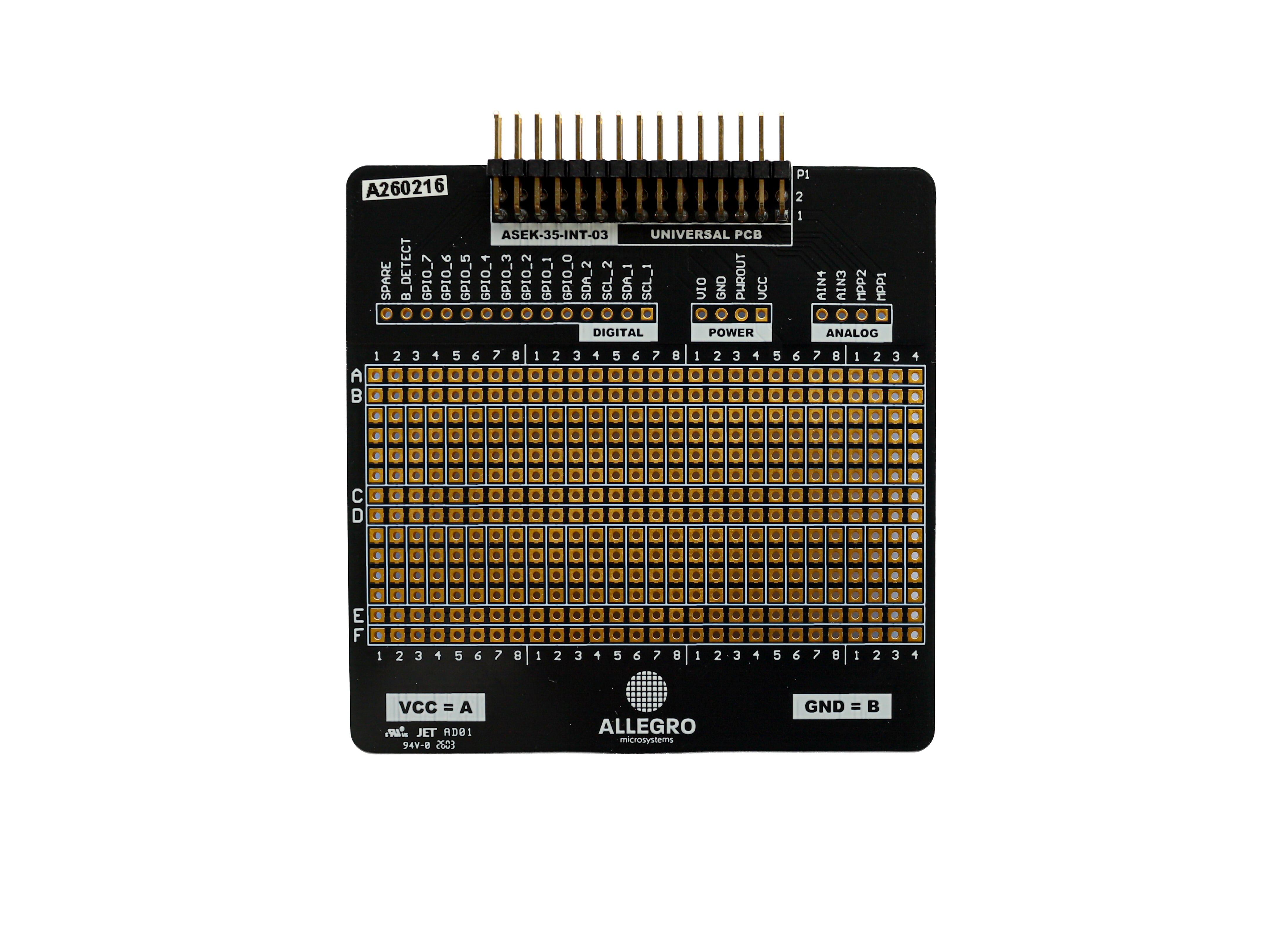

This interface board is designed for direct board-to-board connection to the ASEK-35 programmer through the 2×15-pin P1 header.
The board includes a 28-column × 14-row prototyping matrix with 100 mil pitch, providing a convenient universal PCB area for quick circuit assembly and experimentation. Row A is preconnected to the VCC supply rail, and row B is tied to GND, simplifying the implementation of basic test circuits and supporting rapid prototyping.
ASEK-35 signals are grouped into clearly labeled functional domains, including analog, power, and digital, making it easier to integrate external components or measurement equipment. Supported part numbers and wiring configurations are listed in Table 1 of the ASEK-35 Hardware Selection Guide.
