Allegro 电流传感器

带宽 120 kHz，高压绝缘电流传感器 IC，具有集成过流检测功能

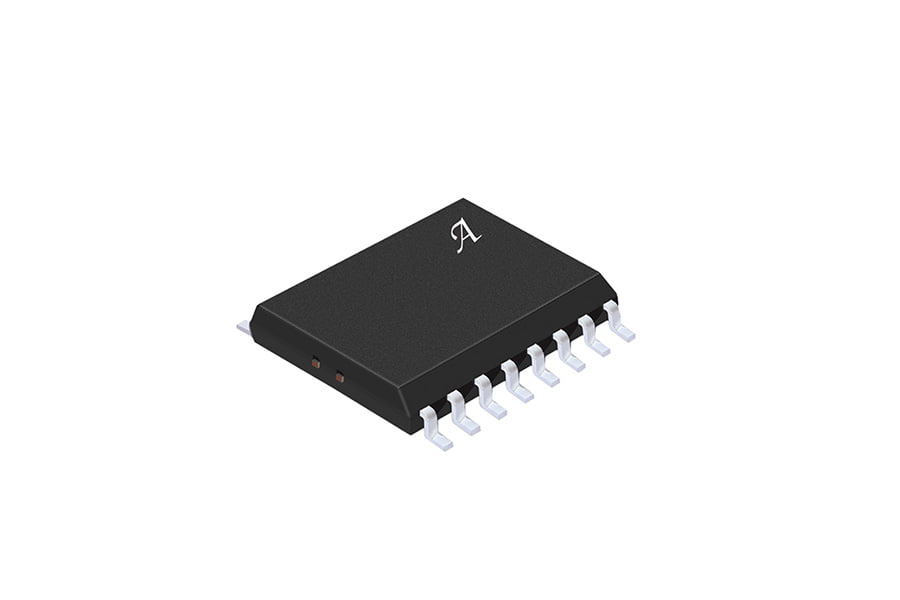

ACS710

ACS710 数据手册

Product Details

Top Features

  • 通过专利放大器和滤波器设计工艺实现高带宽行业领先的噪音性能
  • 体积小，适用于有空间限制的应用。
  • 1 mΩ 初级导体电阻产生的功率损耗小
  • 高绝缘电压适合在电网火线应用
  • 可供用户调整的过流故障标准
  • 过流故障信号通常反映 <2 µ中的过流状况
  • 由于 dV/dt 的高瞬变电压，集成屏幕事实上能完全消除电流导体中的电容耦合。
  • 滤波管脚电容器能提高低带宽应用中的分辨率。
  • 3 至 5.5 V, 单电源工作
  • 厂家设定的灵敏度和静态输出电压
  • 稳定斩波带来十分稳定的静态输出电压
  • 电源电压的成比例输出

Part Number Specifications and Availability
