Highest Speed and Accuracy to Date in Allegro’s Newest Current Sensor IC

March 19, 2019
Highest Speed and Accuracy to Date in Allegro’s Newest Current Sensor IC

Complete analog system solution for systems that use external microprocessors

Allegro MicroSystems, a global leader in power and sensing solutions for motion control and energy efficient systems, has announced their latest Hall-effect current sensor IC, which delivers their highest speed and accuracy in > 400 A sensing applications to date. Ideally suited for hybrid and electric vehicle inverter applications that need high accuracy sensing to 1000 amps or more, the ACS70310 offers a robust solution with diagnostic functions that can help improve functional safety and reliability.

The ACS70310 linear current sensor IC achieves ±1.2% sensitivity and ±5 mV of offset error over the automotive temperature range of –40°C to 150°C.  By providing both short-circuit and overcurrent detection, the ACS70310 delivers an analog output voltage proportional to the applied magnetic field. Providing improved safety, the output of the ACS70310 has a response time of 2 µs and a typical operating bandwidth of 240 kHz.

This current sensor IC is also extremely robust. The on-board supply regulator of the ACS70310 enables the supply pin to survive voltages of ±18 V to protect against reverse battery connection, and the output pin can survive voltages of +16 to -6 V for defense against harsh automotive voltage transients.

“Our current sensor ICs are leading the market in inverters in hybrid and fully electric vehicles—thanks to our focus on innovation in the industry,” explains Shaun Milano, Director of Allegro’s Current Sensor Product Line. The ACS70310 offers the industry-leading accuracy, speed, and protection features that our customers have been looking for.”

The ACS70310 is field programmable by the customer to optimize both the sensitivity and offset after assembly into the final system. Several other parameters are also programmable (see the datasheet for complete details). Customers can also order Allegro-programmed devices and conduct fast and efficient software calibration of both sensitivity and offset using their system microcontroller.

The sensor IC incorporates a highly sensitive Hall element with a BiCMOS interface integrated circuit that employs a low noise, small-signal high-gain amplifier, as well as a low-impedance output stage, and a proprietary, high bandwidth dynamic offset cancellation technique.

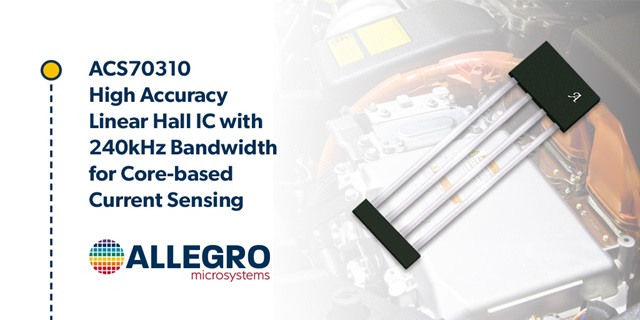

The IC is provided in an extremely thin case (1 mm thick), 4-pin SIP (single in-line package, suffix KT) that is lead (Pb) free, with 100% matte tin lead frame plating.

Download your copy of the ACS70310 datasheet today.
