A5931 and A5931-3: Three Phase Sensorless Fan Drivers

A5931 Product Image

A5931 Datasheet
A5931-3 Datasheet
Navigate

Description

Top Features

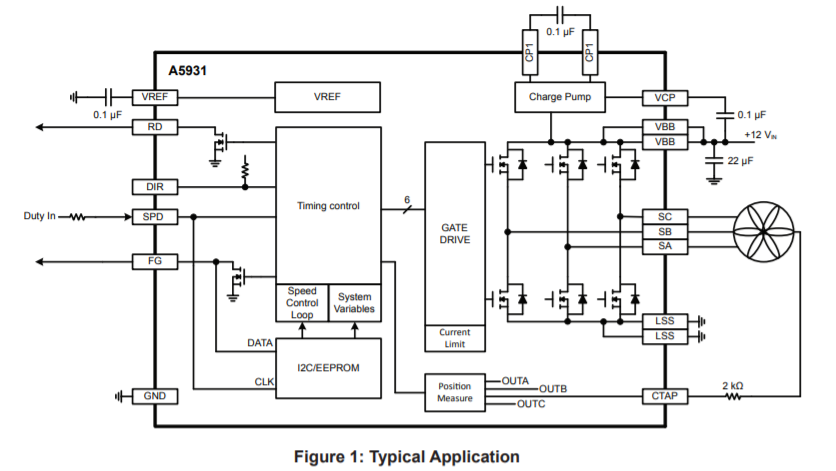

The A5931 is a three phase sensorless BLDC fan driver IC that incorporates sinusoidal drive to minimize audible noise and vibration.

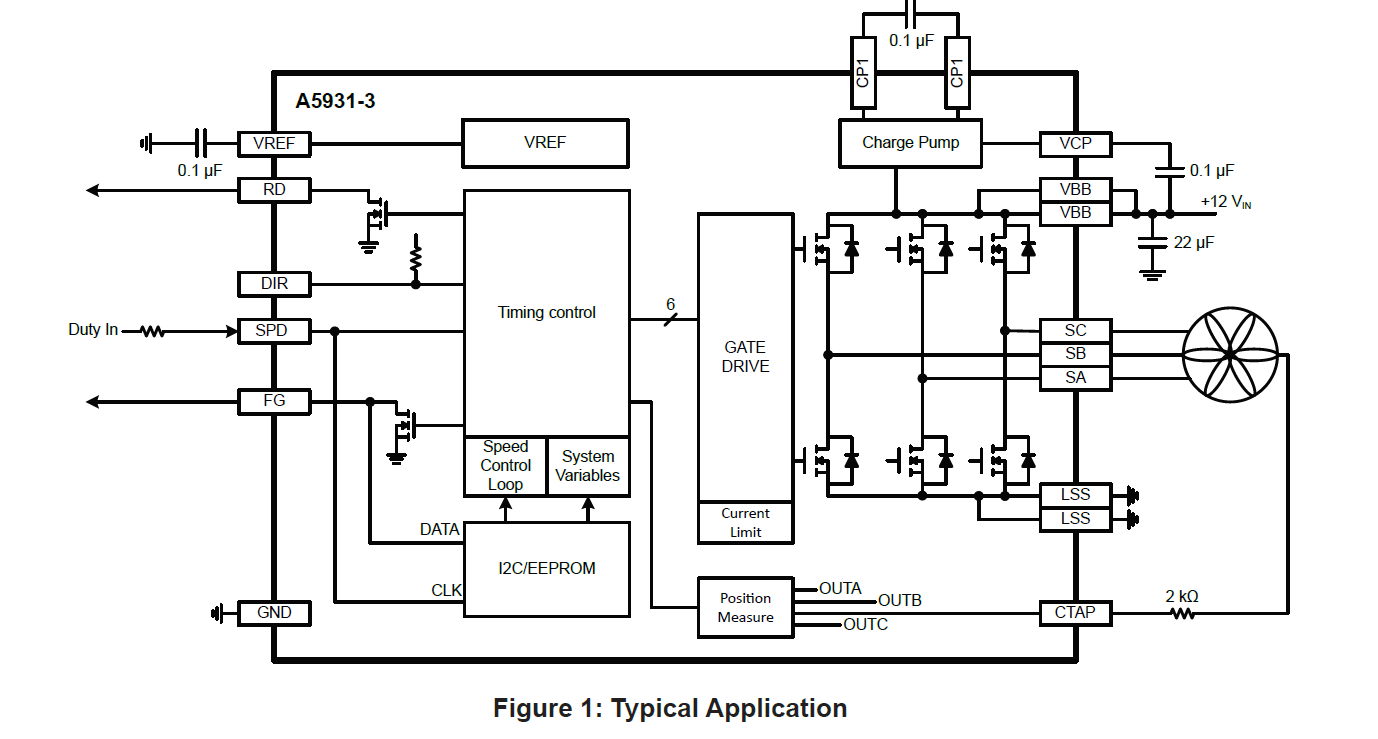

The A5931-3 is the latest in the family with a new feature that allows user to adjust deceleration speed from Force Open Loop to Close Loop.

A flexible closed-loop speed control system is integrated into the IC. This eliminates the requirement for a microprocessor-based system and minimizes programming requirements.

The A5931 devices are available in both commercial and automotive grade.

  • 180° sinusoidal drive - Low audible noise and vibration
  • Motor position using Allegro's sensorless algorithm - Eliminates external Hall sensors
  • Closed-loop speed control
  • Speed curve configuration via EEPROM
  • Lock detection
  • Soft start
  • Standby mode
  • Shorted load protection
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
A5931GESTR-3-T 24-lead QFN -40°C to 105°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5931GESTR-T 24-lead QFN -40°C to 105°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5931GLPTR-T 16-lead TSSOP -40°C to 105°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5931KESTR-1-J 24-lead QFN -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5931KLPTR-T 16-lead TSSOP -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

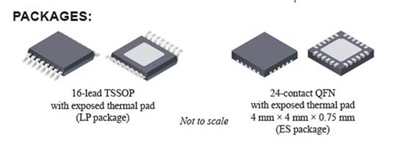

A5931 Packages

LP Package Documentation

ES Package Documentation
