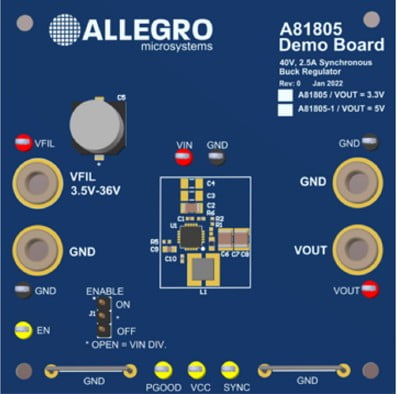

The A81805 Evaluation Board is designed to aid system designers with evaluating the operation and performance of the A81805 and A81805-1 2.5 A synchronous buck regulators. The A81805 Evaluation Board is a PCB that is available in two configurations: the A81805 with VOUT of 3.3 V, and the A81805-1 with VOUT of 5.0 V. The evaluation board will arrive with a mark on one of the two silkscreen boxes at the top right identifying the device for which the evaluation board is configured.
Product Details
Product Details
Top Features
- Operating Input Voltage Range: 3.5 to 36 V
- Output current of up to 2.5 A
- Enable input through jumper or test point
- Option for external Sync frequency
Supported Products:
Content
- A81805 Evaluation Board
- A81805-1 Evaluation Board
