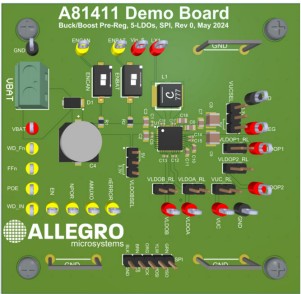

APEK81411KEV-01-T Evaluation Board

Fully Integrated PMIC for Safety Critical Systems with Buck-Boost Pre-Regulator and 5× LDOs

The A81411 Evaluation Board is designed to help system designers evaluate the operation and performance of a power management IC. The A81411 Evaluation Board provides connections to a Buck-Boost Pre-Regulator, 5× Linear Regulators and SPI communications.

Features

  • Wide input range:3.2 to 36 V VIN operating
  • Five internal linear regulators with fold-back short-circuit protection
  • 2.2 MHz synchronous buck-boost preregulator (VREG: 5.35 V) with internal compensation
    • VUC: 3.3 V or 5 V (selectable by a pin) regulator for microcontroller
    • VLDOA: 5 V (or 3.3 V factory option) general-purpose low-dropout (LDO) regulator
    • VLDOB: 5 V or 3.3 V (selectable by a pin) always-on LDO regulator
    • VLDOP1 and VLDOP2: Two programmed (5 V or 3.3 V) and enabled via serial-port-interface (SPI) LDO regulators with short-to-battery protection for remote sensors
