Automotive Multi-Output Voltage Regulator with Buck Converter, LDOs, and Protection

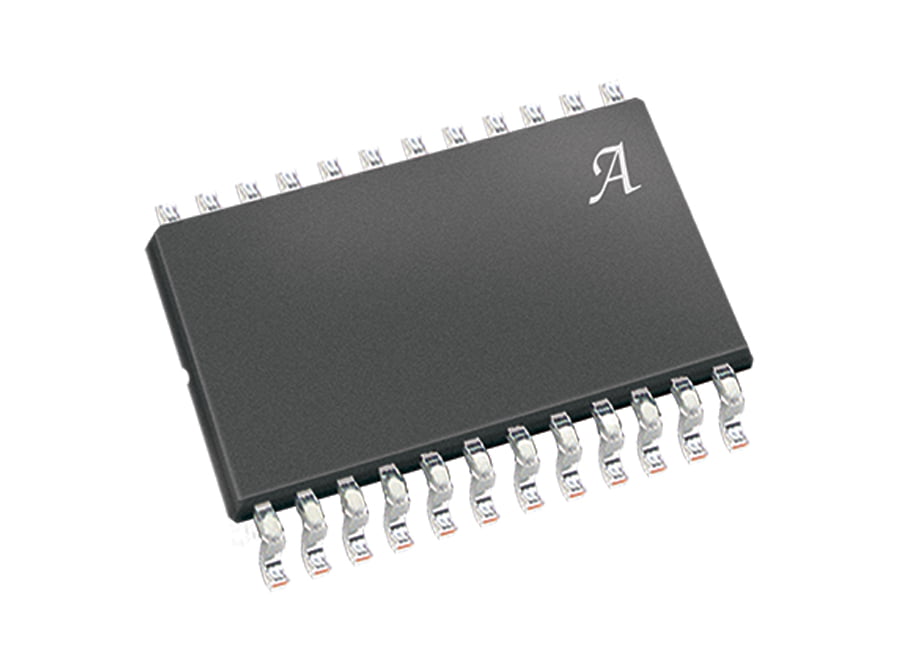

A8450
The A8450 provides a versatile power solution for automotive applications, integrating a buck converter, multiple LDO regulators (including short-to-battery protected outputs), and comprehensive protection features for robust operation.
Product Details
Product Details
Top Features
- 6 V to 45 V input range
- DC-to-DC buck converter with 5.7 V output
- Overcurrent protection with foldback, and undervoltage lockout
- Dual 5 V outputs
- Digital 5 V ±2%, 200 mA
- Analog 5 V, 200 mA
- Short-to-supply protection on analog regulator
- Analog to digital regulator output tracking < 0.5%, throughout operating temperature range
- 3.3 V linear regulator, with foldback current limit
- Adjustable 1.2 V to 3.3 V linear regulator, adjustable foldback
- Ignition switch enable; Sleep mode
- 100% duty cycle operation for low input voltages
- Power OK output
- -40°C to 135°C ambient operating temperature range
