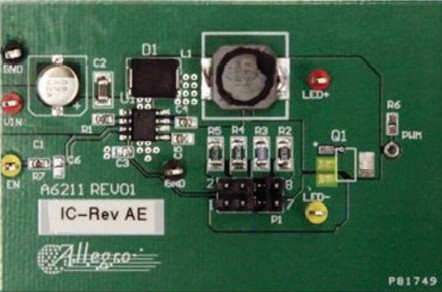

APEK6211GLJ-01-T Evaluation Board

A6211 3A Constant-Current Buck LED Driver with PWM Dimming

This evaluation board is used to demonstrate the operation and performance of the Allegro A6211 constant-current buck regulator LED driver.

Features

Contents

  • A6211 constant-current buck LED driver
  • User-selectable LED output current up to 3 A
  • LED dimming control enabled via an external PWM signal
  • Test point for connection of external logic sources for enable/disable signal or PWM dimming signal
  • Test points for connection of an external LED string

  • APEK6211 evaluation board
