A6213 and A6213-1: Automotive Grade, Constant-Current PWM Dimmable Buck Regulator LED Driver

Product Image

A6213 ECAD Model
A6213 Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

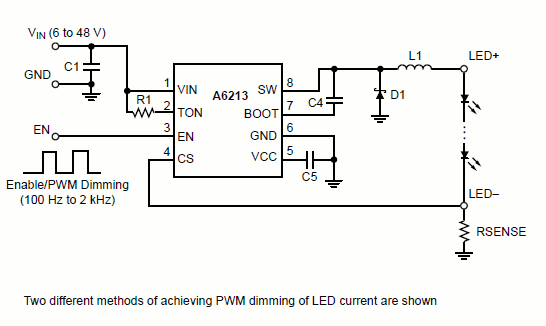

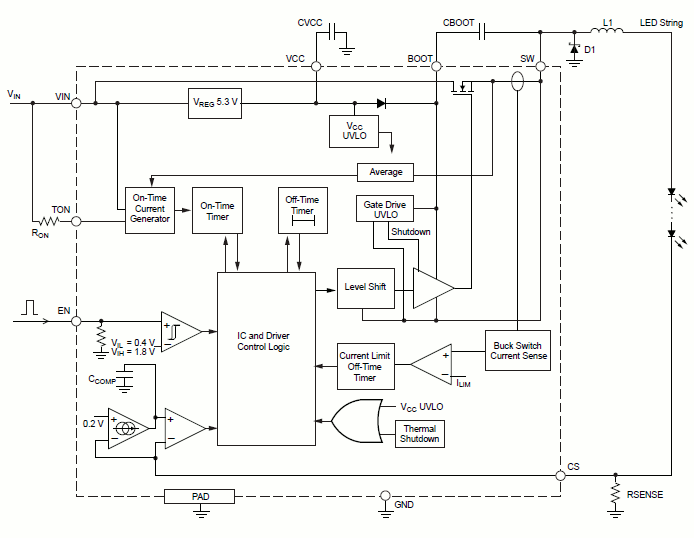

The A6213 is a single IC switching regulator that provides constant-current output to drive high-power LEDs. It integrates a high-side N-channel DMOS switch for DC-to-DC step-down (buck) conversion. A true average current is output using a cycle-by-cycle, controlled on-time method.

Output current is user-selectable by an external current sense resistor. Output voltage is automatically adjusted to drive various numbers of LEDs in a single string. This ensures the optimal system efficiency.

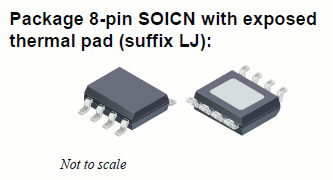

LED dimming is accomplished by a direct logic input pulse width modulation (PWM) signal at the enable pin. The device is provided in a compact 8-pin narrow SOIC package (suffix LJ) with exposed pad for enhanced thermal dissipation. It is lead (Pb) free, with 100% matte tin leadframe plating.

  • AEC-Q100 qualified
  • Supply voltage 6 to 48 V
  • True average output current control
  • 3.0 A maximum output over operating temperature range
    (1.5 A for A6213-1)
  • Cycle-by-cycle current limit
  • Integrated MOSFET switch
  • Dimming via direct logic input or power supply voltage
  • Internal control loop compensation
  • Undervoltage lockout (UVLO) and thermal shutdown protection
  • Low power shutdown (1 μA typical)
  • Robust protection against:
    • Adjacent pin-to-pin short
    • Pin-to-GND short
    • Component open/short faults

Automotive lighting

  • Daytime running lights
  • Front and rear fog lights
  • Turn/stop lights
  • Map light
  • Dimmable interior lights
Packages
× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note
Documents Found: 32
Document Type Document Name
Application Note
Design Considerations in Selection of Converter Configuration for Automotive LED Headlight Applications
