The A6216 is a single-IC switching regulator that provides constant-current output to drive high-power LEDs. It integrates a high-side N-channel DMOS switch for DC-to-DC step-down (buck) conversion. It can accept input voltage from 4.5 V to 55 V, to drive a single LED string up to 2 Amps. This evaluation board and its user guide provide an easy way to demonstrate the operations of A6216.
Product Details
Product Details
Top Features
- A6217 constant-current buck LED driverm
- User-selectable LED output current up to 1.5 A
- LED dimming control enabled via an external PWM signal
- Test point for connection of external logic sources for enable/disable signal or PWM dimming signal
- Test points for connection of an external LED string
Supported Products:
Content

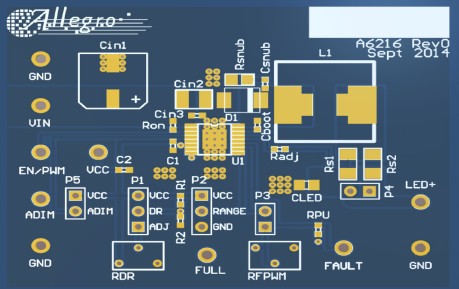

- A6216 Evaluation Board
