APEK80802KEJ-01-BB-T Evaluation Board

ALT80802 Automotive 2A Buck-Boost/Buck LED Driver with Wide Input Voltage and Adjustable Frequency

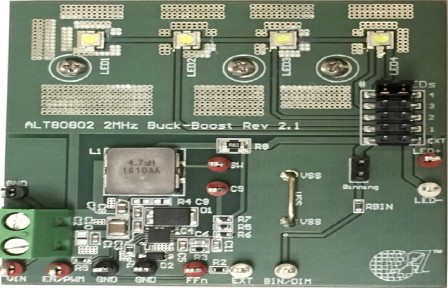

The ALT80802 Evaluation Board is designed to help system designers evaluate the operation and performance of the ALT80802 Wide Input Voltage, Adjustable Frequency, Buck-Boost or Buck, 2 Amp LED Driver. This board is configured in a buck-boost configuration, which allows operation while driving LED strings with a forward voltage drop below, equal to or higher than the input voltage.

Features

Contents

  • ALT80802 Buck-Boost or Buck LED driver
  • Optional external binning/dimming control of regulated LED current level
  • Optional PWM control for pulse width modulation dimming of LED current
  • Fault pin (FFn) output with externally supplied pull-up rail

  • APEK80802KEJ-01-BB-T Evaluation Board
