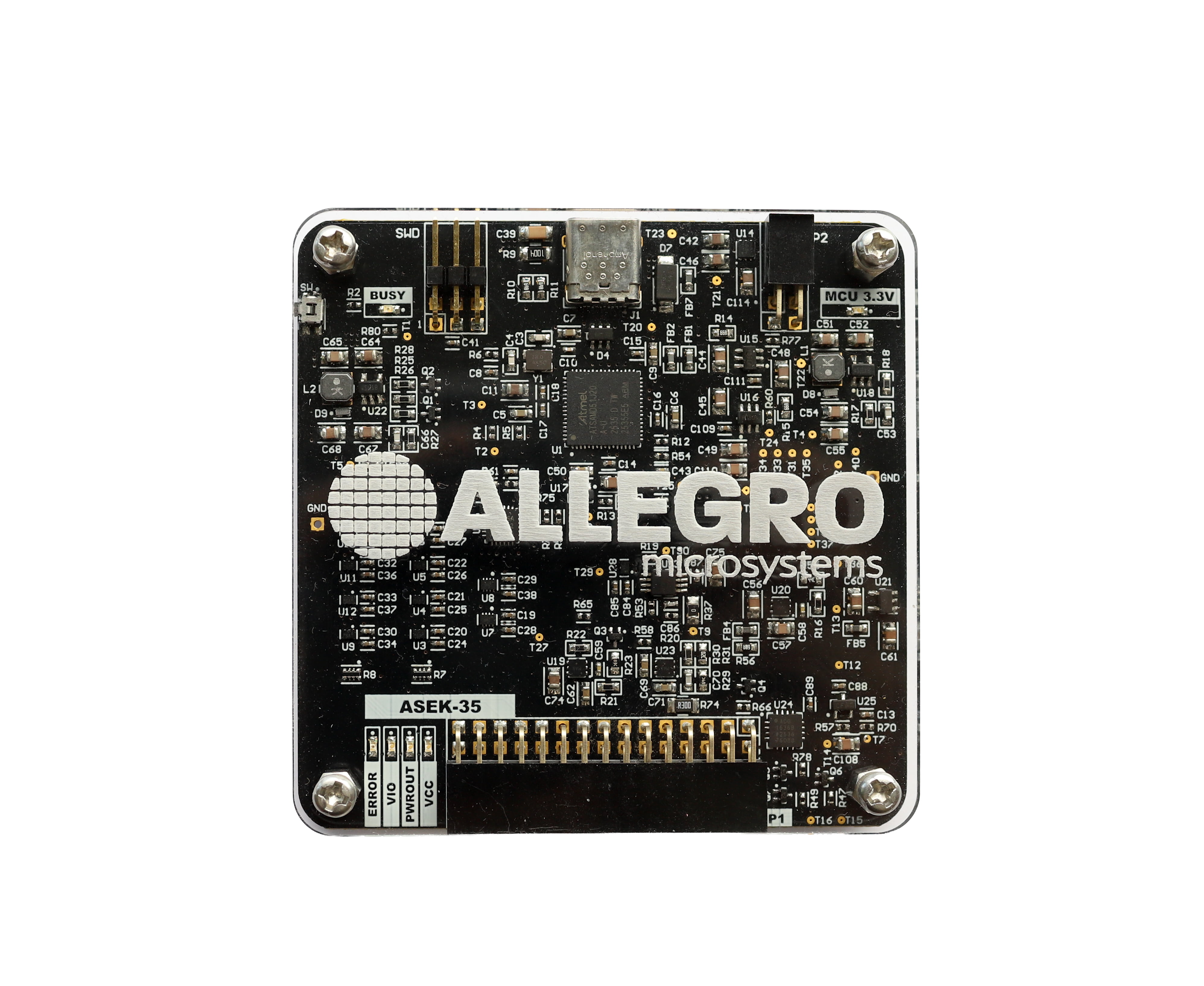

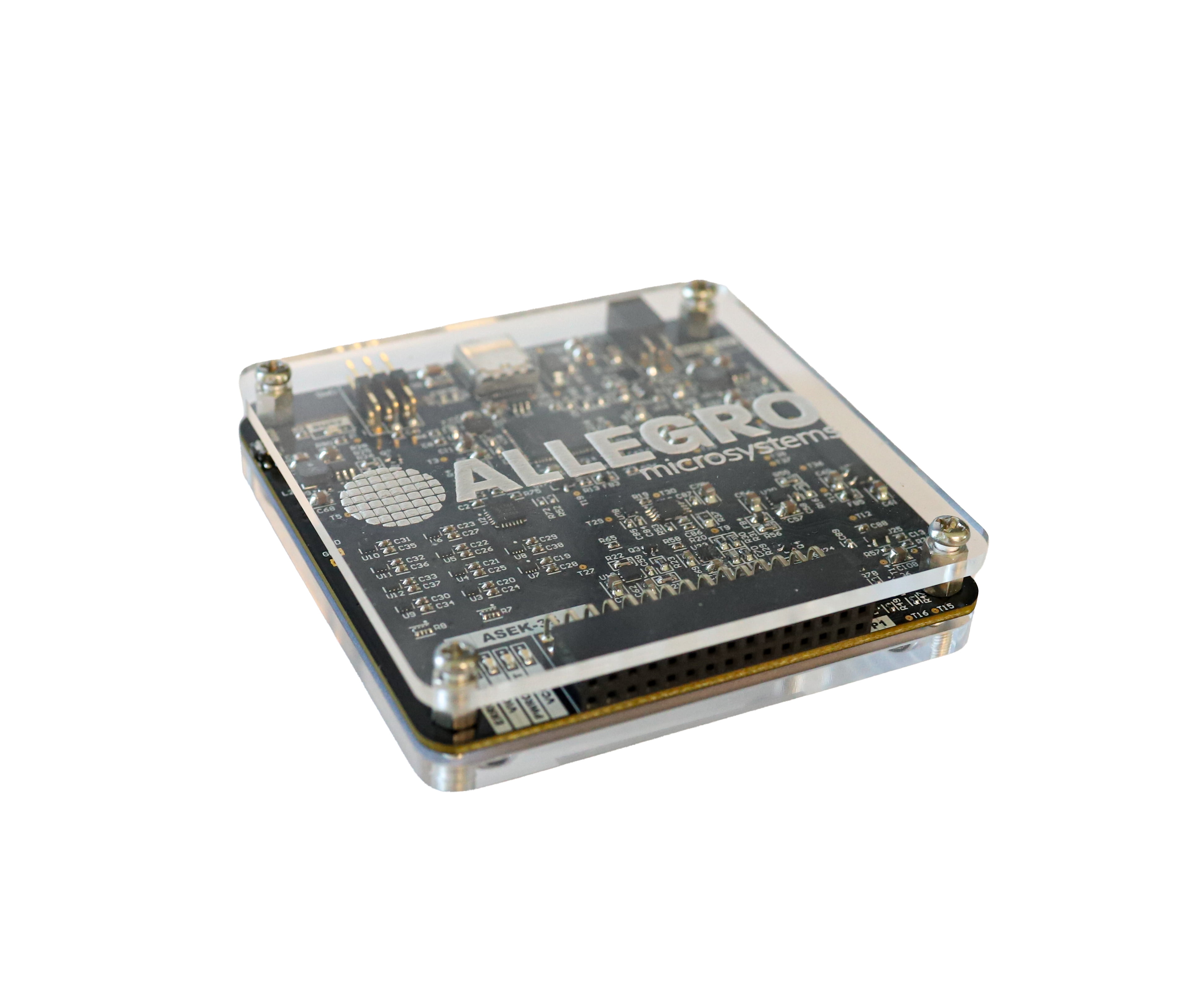

ASEK-35 Programmer

Interface boards provide a flexible, universal hardware interface for all supported ASEK-35 current sensors. Refer to Table 1 in the ASEK-35 Hardware Selection Guide for supported part numbers and wiring configurations. Each board offers specific capabilities and compatible sensor listings. They are well suited for connecting sensors mounted on a demo board or within a customer application using an external wire harness connected to the interface board terminals.

Socket boards are package or sensor-specific boards designed to simplify sensor evaluation and improve the user experience. They provide a convenient, ready-to-use solution that requires no external wiring for standard evaluation. Each board includes a burn-in test socket, application-level components, test points, and a header connector for easy access to sensor signals. The header connection can also be used to interface with sensors mounted on a demo board or in a customer application through an external wire harness. Note: Socket boards are supplied without the sensor installed.

Accessory boards expand the hardware functionality of the ASEK-35 programmer. These purpose-built boards provide dedicated support for specialized tasks, such as calibration and hardware verification. For example, the ASEK-35-ACC-CAL accessory board is recommended for high-accuracy calibration of all ASEK-35 ADC and DAC channels.
