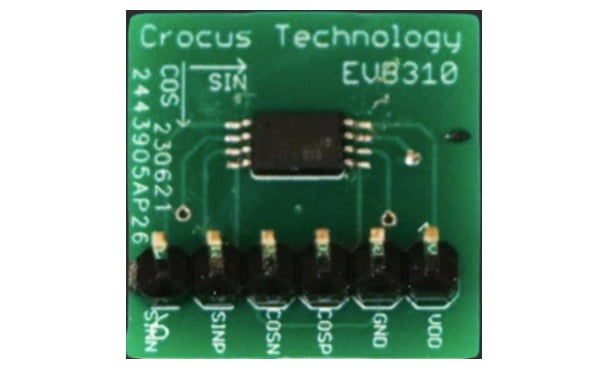

CTD310LS-AT8 Evaluation Board

CT310 2D TMR Angle Sensor with High Accuracy

The CT310 is a 2D angle sensor in a dual full-bridge configuration from Allegro developed on its patented XtremeSense™ 2D tunnel magnetoresistance (TMR) technology.

Top Features

Contents

  • Angle error of less than 0.6° (after one-time compensation) over full temperature range
  • Dual full-bridge resistor network
  • Operating magnetic field: 250 to 900 G
  • Differential outputs for SIN and COS axes
  • Supply voltage: 1 to 5.5 V
  • AEC-Q100 Grade 1

Supported Products:

  • CTD310LS-AT8 Evaluation Board
