ASEK-35-SOC-OL01

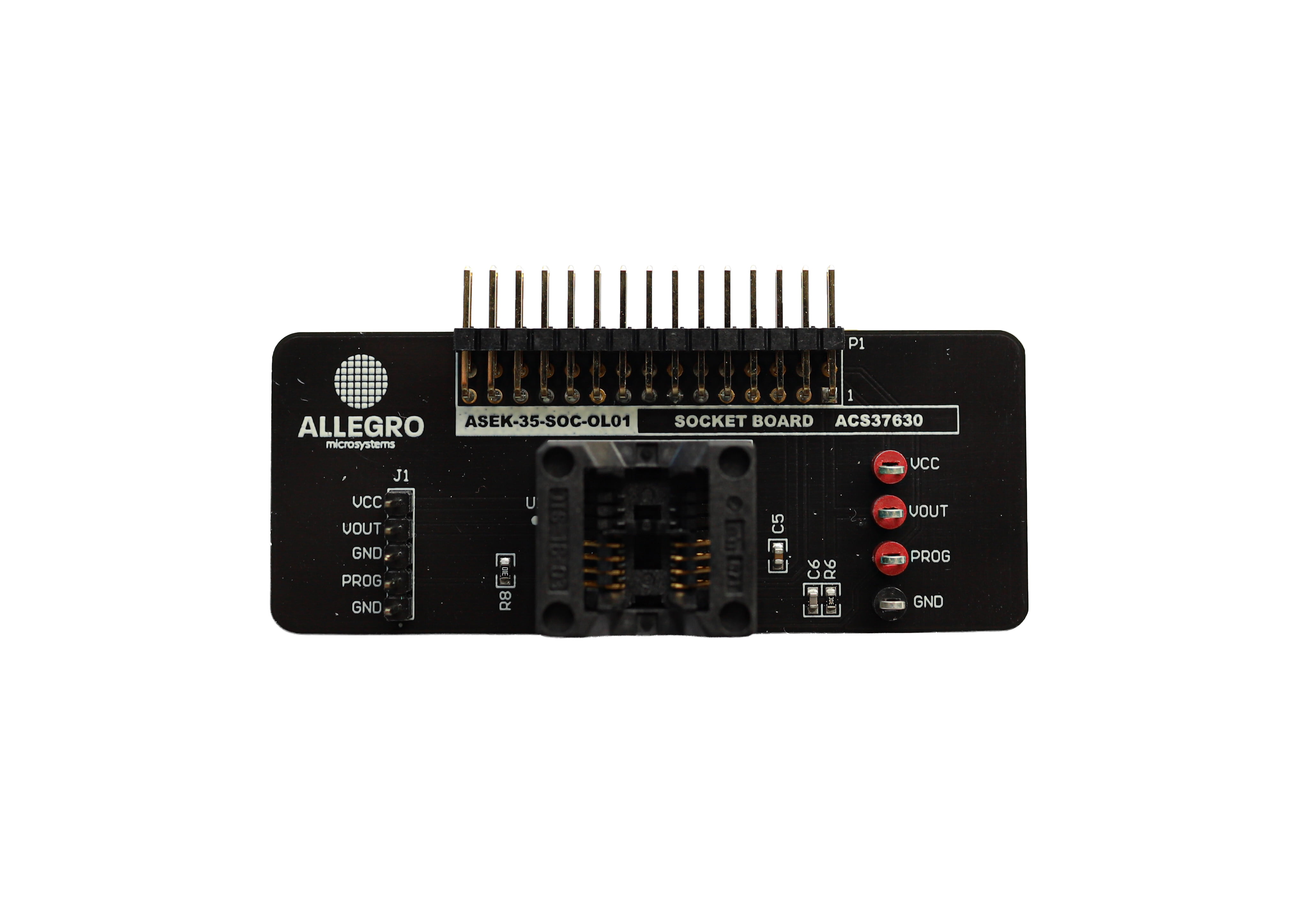

The ASEK-35-SOC-OL01 a socket board for ACS37630 current sensor in OL package (eight-lead, small outline integrated circuit; SOIC-8). The board routes all required sensor signals from the ASEK-35 to a burn-in test socket and clearly labeled test points simplifying connectivity for development and evaluation.
Product Details
Product Details
Top Features
Supported Sensors
ACS37630 - OL (SOIC8)
Documentation
ASEK-35 Hardware Selection Guide
ASEK-35 Software User Guide
ASEK-35 Programmer User Guide
Content
This socket board is designed for direct board-to-board connection to the ASEK-35 programmer through the 2×15-pin P1 header.
It includes a burn-in test socket (Enplas OTS-8-1.27-03), application-level components such as the VCC bypass capacitor or VOUT loads, test points, and connectors for convenient access to sensor signals. Alternatively, the J1 header can be used to interface with sensors mounted on an external demo board or within a customer application through a wire harness.
Note: The socket board is supplied without the sensor installed.
