AMT49105: Highly Integrated ASIL BLDC MOSFET Driver IC

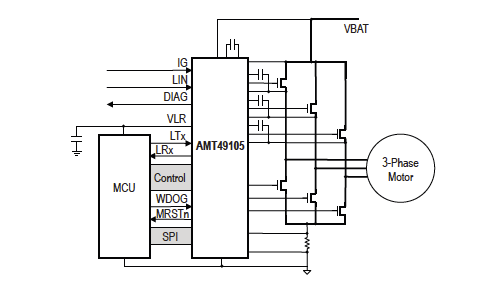

Product Image

Description

Top Features

The Allegro AMT49105 is designed for customers requiring an N-Channel MOSFET gate driver for high power inductive loads, such as BLDC motors. It is ideal for applications like engine cooling fan, pumps, braking and other safety critical applications.

The AMT49105 simplifies motor system designs and provides footprint reduction by integrating much of the power analog system functionality. The device provides the LIN transceiver, regulated microprocessor supply, phase monitors for sensorless BLDC control and other unique features that reduce overall power consumption for modern, energy efficient vehicles. Its robust output drive capabilities allow it to be used in a wide range of applications, including power applications >1KW. These features, coupled with Allegro’s advanced diagnostics and critical safety features, provide an efficient and small footprint solution.

The AMT49105 is offered in a small footprint 7x7 QFN reducing the overall footprint by ~40% compared to an equivalent QFP package.

ASIL Logo

AMT49105 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL B capability (pending assessment) for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.

  • Meets automotive safety requirements
  • 3-phase bridge MOSFET driver
  • Bootstrap gate drive for N-channel MOSFET bridge
  • Cross-conduction protection with adjustable dead time
  • Charge pump for low supply voltage operation
  • Programmable gate drive voltage and strength
  • 5.5 to 50 V supply voltage operating range
  • Integrated logic supply
  • Current sense amplifier with programmable gain and offset
  • SPI-compatible serial interface
  • Bridge control by direct logic inputs or serial interface
  • Integrated bemf state comparators
  • LIN/PWM physical interface with Wake
  • Programmable logic supply regulator with current limit
  • MCU Window watchdog and reset
  • Ignition switch interface
  • Diagnostics, status, voltage, and temperature feedback

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APEK49105KEV-01-T DEMO BOARD -20°C to 85°C No -- Contact your
local sales rep
Check
Distributor Stock
AMT49105KEVTR-J 48-lead QFN/MLP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

48-pin QFN with exposed thermal pad and wettable flank (suffix EV)

Allegro 48-Pin QFN EV Package

EV Package Documentation
