A3901: Dual Full Bridge Low Voltage Motor Driver

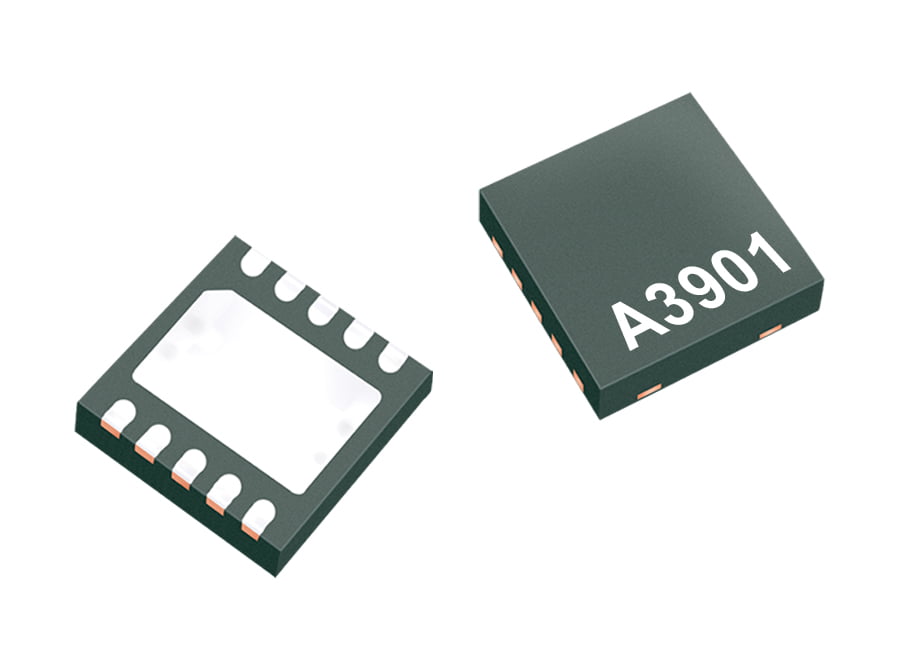

Product Image

Description

Top Features

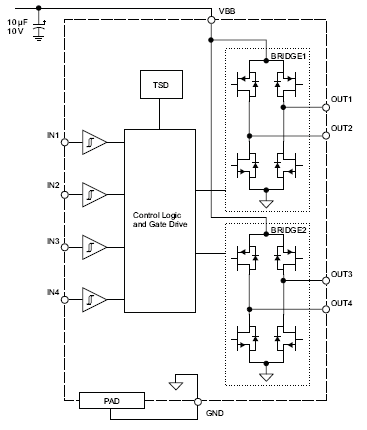

The A3901 is a dual full-bridge motor driver, designed for low voltage portable applications involving bipolar stepper or brush DC motors. The outputs have been optimized for low voltage drop, with currents up to ±400 mA (±800 mA with outputs paralleled) and an operating voltage range of 2.5 to 5.5 V.

The four inputs (IN1 to IN4) can control a bipolar stepper motor in full- or half-step mode, or DC motors in forward, reverse, or brake mode. The inputs can be PWMed for current or speed control at frequencies up to 250 kHz.

Internal protection circuitry includes thermal shut down (TSD) and crossover (shoot-through) protection.

The A3901 is supplied in a 3 x 3 x 0.75 mm nominal, 10-lead MLP package, with exposed thermal pad (package "EJ"). This small footprint package is lead (Pb) free, with 100% matte tin leadframe plating.

  • Low RDS(on) outputs
  • Full- and half-stepping capability
  • Small package
  • Forward, reverse, and brake modes for dc motors
  • Sleep mode with zero current drain
  • PWM control up to 250 kHz
  • Crossover-current protection
  • Thermal shutdown (TSD)

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
A3901SEJTR-T 10-lead DFN -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APEK3901SEJ-01-T DEMO BOARD -20°C to 85°C No -- Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

The A3901 is supplied in a 3 x 3 x 0.75 mm nominal, 10-lead MLP package, with exposed thermal pad (package "EJ"). This small footprint package is lead (Pb) free, with 100% matte tin leadframe plating.

EJ TDFN with exposed pad 10 contact
