A4950: Full-Bridge DMOS PWM Motor Controller

Allegro LJ SOIC with exposed pad 8-pin package

A4950 Datasheet
Navigate

Description

Top Features

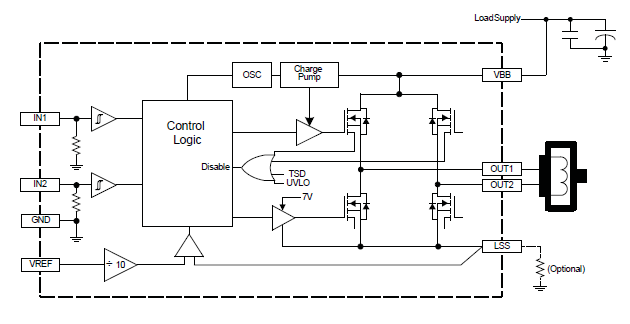

Designed for pulse width modulated (PWM) control of DC motors, the A4950 is capable of peak output currents to ±3.5 A and operating voltages to 40 V.

Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM motor control signals. Internal synchronous rectification control circuitry is provided to lower power dissipation during PWM operation.

Internal circuit protection includes overcurrent protection, motor lead short to ground or supply, thermal shutdown with hysteresis, undervoltage monitoring of VBB, and crossover-current protection.

For high ambient operating temperature applications, an automotive grade device is offered (A4950K). The K grade device is tested across extended temperature and voltage ranges to ensure compliance in automotive or industrial applications.

  • Low RDS(on) outputs
  • Overcurrent protection (OCP)
    • Motor short protection
    • Motor lead short to ground protection
    • Motor lead short to battery protection
  • Low Power Standby mode
  • Adjustable PWM current limit
  • Synchronous rectification
  • Internal undervoltage lockout (UVLO)
  • Crossover-current protection
  • A4950K is AEC-Q100 Grade 1 qualified
  • Commercial temperature grade (A4950E: -40°C to 85°C )
  • Automotive temperature grade (A4950K: -40°C to 125°C)
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
A4950ELJTR-T 8-lead SOIC -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APEK4950ELJ-01-T DEMO BOARD -40°C to 85°C No -- Contact your
local sales rep		 Check
Distributor Stock
A4950KLJTR-T 8-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

The A4950 is provided in a low-profile 8-pin SOICN package with exposed thermal pad (suffix LJ) that is lead (Pb) free, with 100% matte tin leadframe plating.

LJ SOIC with exposed pad 8 pin
