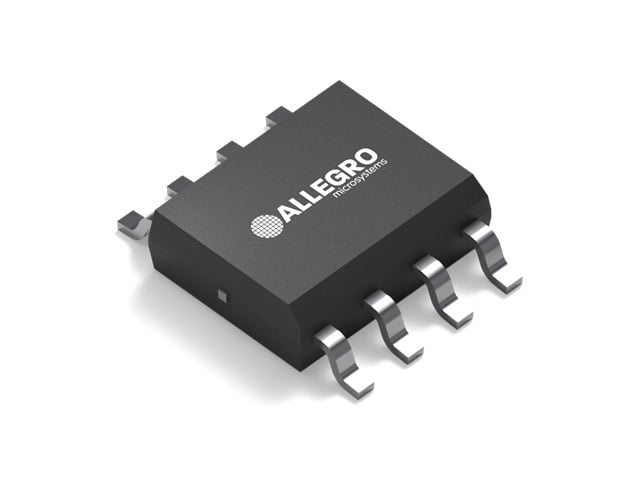

The A4950 provides efficient and reliable PWM control of DC motors, with peak output currents up to ±3.5 A and integrated protection features for robust performance. Available in automotive and commercial grades.
Product Details
Product Details
Top Features
- Low RDS(on) outputs
- Overcurrent protection (OCP)
- Motor short protection
- Motor lead short to ground protection
- Motor lead short to battery protection
- Low Power Standby mode
- Adjustable PWM current limit
- Synchronous rectification
- Internal undervoltage lockout (UVLO)
- Crossover-current protection
- A4950K is AEC-Q100 Grade 1 qualified
- Commercial temperature grade (A4950E: -40°C to 85°C )
- Automotive temperature grade (A4950K: -40°C to 125°C)
Part Number Specifications and Availability
