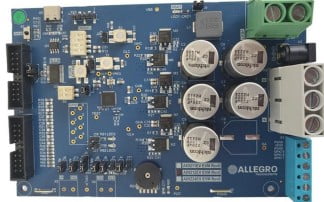

The A89224 evaluation board is a high-performance processor with integrated three-phase gate driver and precision current-sense capability. The evaluation board facilitates advanced control of three-phase brushless direct current (BLDC) and permanent-magnet synchronous-motor (PMSM) motors through graphical user interface (GUI).
Product Details
Product Details
Top Features
- Three phase BLDC motor connection
- USB-C and FTDI chip for universal asynchronous receiver/transmitter (UART) communication with GUI for motor control
- Potentiometer to test analog-to-digital converter (ADC)
- General-purpose input/output (GPIO) connection socket
Supported Products:
- 90V Automotive Three-phase Motor Driver: A89224
Content
- APEK89224 evaluation board
- Universal debugger daughterboard
