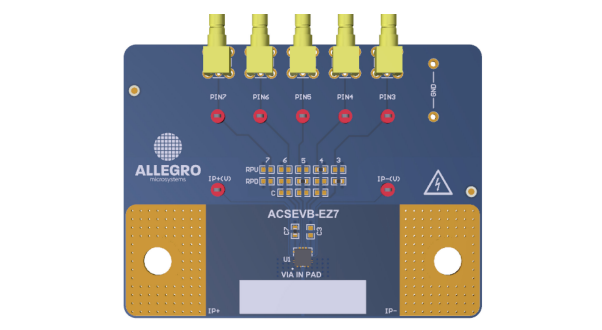

Evaluation boards offer a method for quickly evaluating Allegro current sensors in a lab environment without needing a custom circuit board. This evaluation board (ACSEVB-EZ7, TED-0004114) is intended for use with the ACS37220 EZ packaged current sensor (custom 7-pin SOIC Allegro current sensor).
Product Details
Product Details
Top Features
- Enhanced thermal performance
- 6-layer PCB with 2 oz copper weight on all layers
- Nonconductive-filled via-in-pad
- High-performance FR4 material with 180°C glass
transition temperature
- Flexible layout for user installed connection points
- Standard Keystone test points
- SMA/SMB connector
- 2-pin headers
- Integrated current loop resistance can be measured directly on the evaluation board after test point installation; voltage drop can be measured for approximating power loss in the package.
Supported Products:
Content
- Printed circuit board with populated components
- Available ACS37220 board variants:
- ACSEVB-EZ7-37220-100B3
- ACSEVB-EZ7-37220-100B5
- ACSEVB-EZ7-37220-150B3
- ACSEVB-EZ7-37220-150B5
- ACSEVB-EZ7-37220-200B5
- Available ACS37220 board variants:
- Recommended supporting circuitry for all compatible current sensor are listed in the Supporting Circuitry section below.
