ASEK-33020-SUBKIT-T Evaluation Board

The ASEK-33020-SUBKIT-T allows the A33020 or A33023 angle sensor to connect to the Allegro ASEK-20 evaluation programmer.

Evaluation Board User Guide
Buy Now

Product Details

Top Features

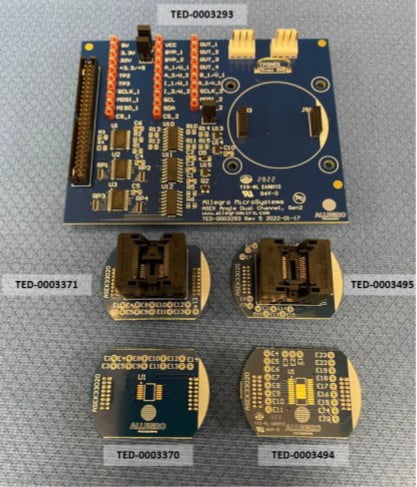

The SUBKIT features a main daughter board as well as socketed and surface mount granddaughter boards for both single and dual die devices. A33020/3 angle sensors are not included in the SUBKIT.

Supported Products:

Content

  • ASEK Angle Dual Channel Daughter Board
    • TED-0003293
  • A33020 Socketed Single Die Granddaughter Board
    • TED-0003371
  • A33020 Socketed Dual Die Granddaughter Board
    • TED-0003495
  • A33020 SMT Single Die Granddaughter Board
    • TED-0003370
  • A33020 SMT Dual Die Granddaughter Board
    • TED-0003494
