True Zero-Speed Gear Tooth Sensor IC with High Accuracy and Low Jitter

ATS627LSG

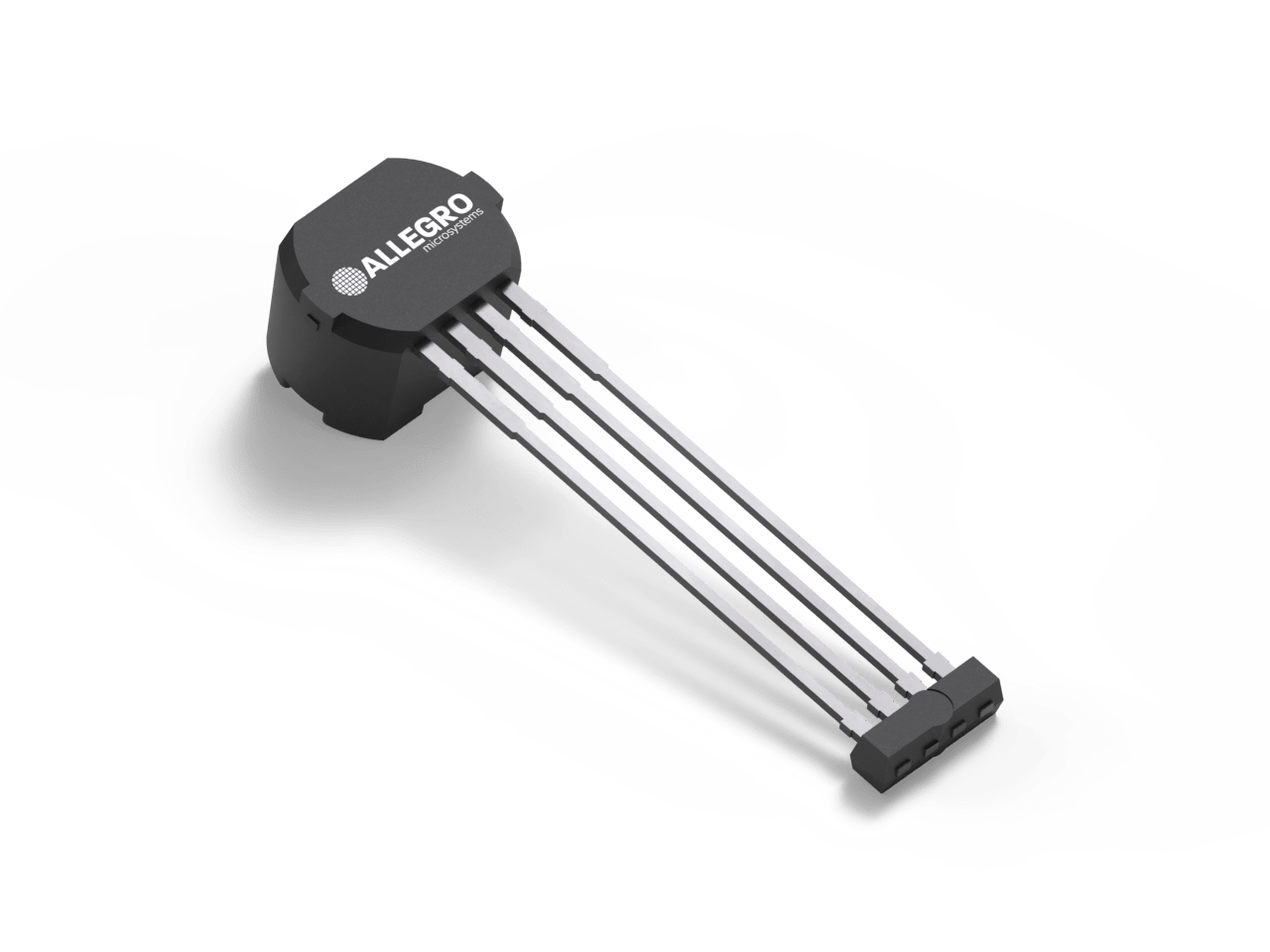

Product Image

The ATS627 offers precise gear tooth sensing with true zero-speed performance, low jitter, and high accuracy. Its integrated Hall IC and rare earth pellet configuration provide a robust and reliable solution for automotive applications.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings ATS627 ECAD Model Type Image

Top Features

Packaging

  • Highly accurate in presence of:
    • Anomalous target geometry (tooth-tooth variation)
    • Signature teeth or valleys
    • Target runout
  • Highly repeatable output edges (low jitter)
  • True zero-speed operation
  • Undervoltage lockout
  • Air gap independent switchpoints
  • Defined power-on state
  • High operating temperature
  • Single-chip sensing IC for high reliability
  • Enhanced quality through Scan Path and IDDQ measurement
  • Enhanced EMC performance

This device is available in a lead (Pb) free 4-pin SIP package (SG) with a 100% matte tin plated leadframe.

SG Package Documentation
