ATS19200: High-Accuracy Hall-Effect Wheel Speed Gear Tooth Sensor IC

ATS19200 Datasheet
Navigate

Description

Top Features

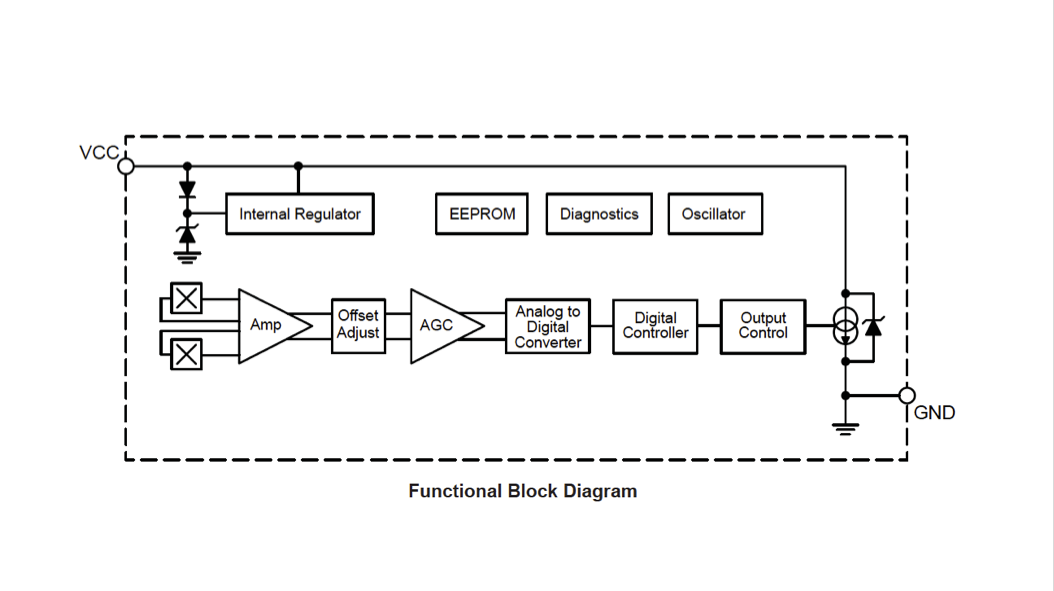

The ATS19200 is an optimized Hall-effect integrated circuit (IC), rare-earth pellet, and high-temperature ceramic capacitor in a single over-molded package that reduces size while improving EMC robustness. No external PCB or capacitor is required.

The ATS19200 offers integrated diagnostics and certified safety design process.

The device provides a user-friendly solution for true zero-speed digital gear tooth sensing in two-wire applications, such as automotive wheel speed, as well as motorcycle/moped anti-lock braking systems. The ATS19200 can also be used as a general purpose speed sensor in recreational vehicles (mopeds, snowmobiles, four-wheelers) and industrial equipment (forklifts, tractors and agricultural equipment).

The ATS19200 is provided in a lead (Pb) free 3-pin back-biased SIP package (suffix SN) with tin leadframe plating.

ASIL Logo

ATS19200 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL B capability for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.

  • Integrated diagnostics and a certified safety design process
  • Integrated capacitor in a single over-molded package provides greater EMC robustness
  • Advanced, industry-proven threshold switching algorithm provides high pitch deviation and duty cycle accuracy over operating air gap range
  • Integrated back-bias magnet for ease of design-in with ferromagnetic gear targets
  • EEPROM offers device traceability throughout the production process
  • Two-wire current source output supporting speed protocol

Typical Applications

× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
A19200LUBATN-H-A 2-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A19200LUBATN-L-A 2-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ATS19200LSNATN-H 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
ATS19200LSNATN-H-A 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
ATS19200LSNATN-L 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock
ATS19200LSNATN-L-A 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro 製品が生命維持装置やシステムの故障の原因となることが予期できる場合、または安全性や有効性に影響を及ぼすことが予想できる場合、そのような生命維持装置やシステムに Allegro 製品はご使用いただけません。

Packaging

The ATS19200 is provided in a lead (Pb) free 3-pin back-biased SIP package (suffix SN) with tin leadframe plating.

SN Package Documentation
