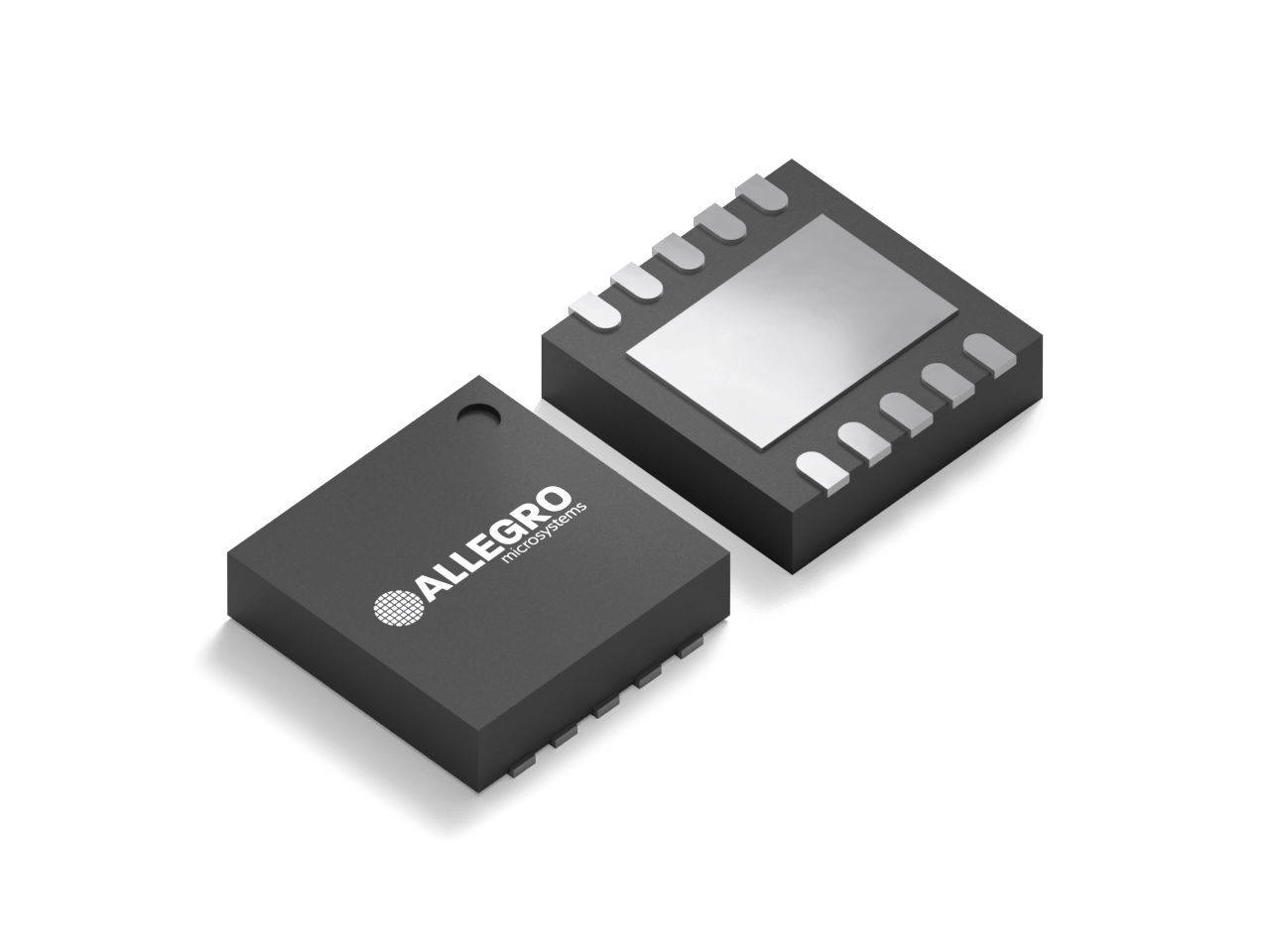

The A31301 provides accurate 3D magnetic field sensing and angle calculation, with flexible operating modes and low power consumption for battery-powered and space-constrained applications. Supports SPI and I²C interfaces.
Product Details
Product Details
Top Features
- Magnetometer with XYZ output
- 15-bit onboard angle output from any 2 axes
- <2° typ angle error for good accuracy in XY and XZ/YZ configurations
- Interrupt/Switch pin for wakeup and triggering

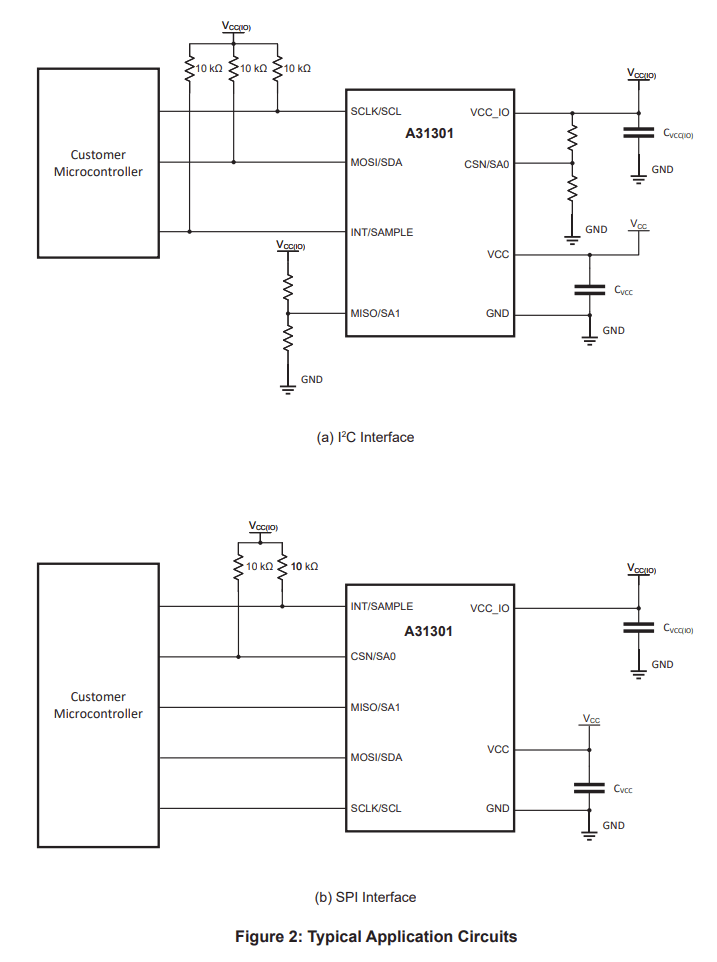

- SPI or I2C output for easy interfacing to most microcontrollers
Target Application
