A3290 and A3291: Chopper Stabilized, Precision Hall-Effect Latches for Consumer and Industrial Applications

Description

The A3290 and A3291 Hall-effect latches are extremely temperature-stable and stress-resistant sensor ICs, especially suited for operation over extended temperature ranges (up to 125°C). Superior high-temperature performance is made possible through Dynamic Offset Cancellation, which reduces the residual offset voltage normally caused by device package overmolding, temperature dependencies, and thermal stress. The two devices are identical except for their magnetic switchpoints. They are not intended for automotive applications.

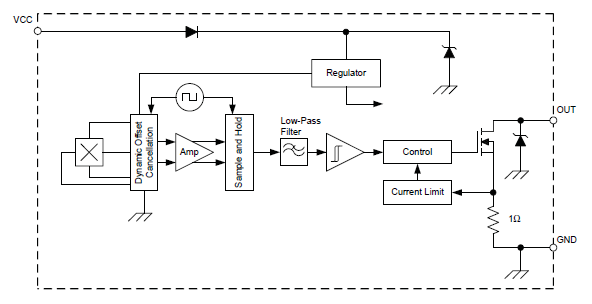

Both devices include, on a single silicon chip, a voltage regulator, a Hall-voltage generator, a small-signal amplifier, chopper stabilization, a Schmitt trigger, and a short-circuit protected open-drain output to sink up to 25 mA. A south polarity magnetic field of sufficient strength is required to turn the output on. A north polarity field of sufficient strength is necessary to turn the output off. An onboard regulator permits operation with supply voltages in the range of 3 to 24 volts.

Two package styles provide a magnetically optimized package for most applications. Type LH is a miniature SOT23W low-profile surface-mount package, and type UA is a three-pin ultramini SIP for through-hole mounting. Both packages are lead (Pb) free with 100% matte tin leadframe plating.

Top Features

  • Symmetrical switchpoints
  • Resistant to physical stress
  • Superior temperature stability
  • Output short-circuit protection
  • Operation from unregulated supply
  • Reverse battery protection
  • Solid-state reliability
  • Small package size

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
A3290KLHLT-T 3-lead SOT -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A3290KLHLX-T 3-lead SOT -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A3290KUA-T 3-lead SIP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A3291KLHLT-T 3-lead SOT -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A3291KLHLX-T 3-lead SOT -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A3291KUA-T 3-lead SIP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

Two package styles provide a magnetically optimized package for most applications. Type LH is a miniature SOT23W low-profile surface-mount package, and type UA is a three-pin ultramini SIP for through-hole mounting. Both packages are lead (Pb) free with 100% matte tin leadframe plating.Packages
