APS12400: Two-Wire Hall-Effect Latch

Description

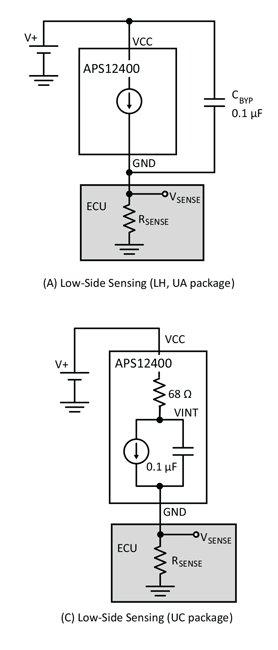

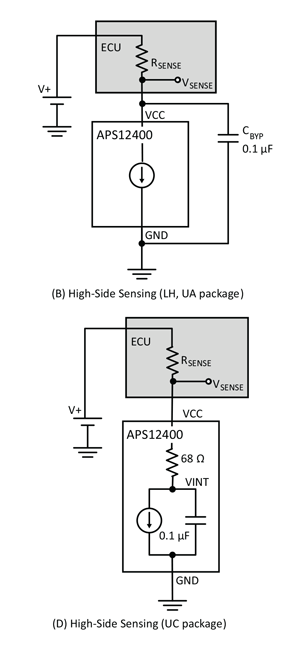

APS12400 devices are two-wire planar Hall-effect sensor integrated circuits (ICs) that include internal diagnostics and support functional safety. The enhanced two-wire current-mode interface provides interconnect open/short diagnostics and adds a Safe State to communicate diagnostic information while maintaining compatibility with legacy two-wire systems. Two-wire sensors are well-suited to safety applications, especially those involving long wire harnesses.

The APS12400 is a factory-calibrated latch (bipolar switch) available in several product options including magnetic switchpoints, temperature coefficient, and output polarity. The response can be matched to SmCo, NdFeB, or low-cost ferrite magnets. There is a choice of two output current levels and either output polarity.

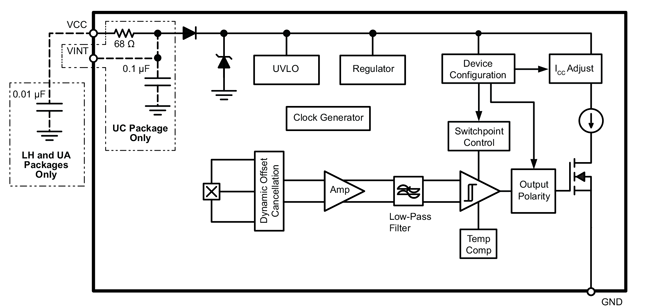

APS12400 sensors are engineered to operate in the harshest environments with minimal external components. They are qualified beyond the requirements of AEC-Q100 Grade 0 and will survive extended operation at 175°C junction temperature. These monolithic ICs include on-chip reverse-battery protection, overvoltage protection (40 V load dump), ESD protection, overtemperature detection, and an internal voltage regulator for operation directly from an automotive battery bus. These integrated features reduce the end-product bill of materials (BOM) and assembly cost.

The available SIP package with integrated discrete components (UC) enables PCB-less applications by incorporating all of the EMC protection components into the IC package. Other package options include industry-standard surface-mount SOT (LH) and throughhole SIP (UA) packages. All three packages are RoHS-compliant and lead (Pb) free with 100% matte-tin-plated leadframes.

For situations where a functionally equivalent but factory-programmed two-wire latch or end-of-line programmable device is preferred, refer to the APS12400 and APS11900 device families, respectively.

TYPICAL APPLICATIONS

  • Automotive and Industrial safety systems
  • Sun roof/convertible top/tailgate/liftgate actuation
  • Clutch-by-wire
  • Electric Power Steering (EPS)
  • Transmissions actuators
  • Wiper motors

ASIL LogoAPS12400 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL A capability (pending confirmation) for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet. For further information, contact your local Allegro field applications engineer or sales representative.





Top Features

  • Developed in accordance with ISO 26262:2011
    • Internal diagnostics and a defined Safe State
  • Multiple product options
    • Magnetic polarity, switchpoints, and hysteresis
    • Temperature coefficient (supports SmCo, NdFeB, and ferrite magnets)
    • Output polarity and current levels
  • Reduces module bill of materials (BOM) and assembly cost
    • Integrated overvoltage clamp (40 V load dump) and reverse-battery diode
    • Integrated series resistor and bypass capacitor (UC package)
    • Enables PCB-less sensor modules
  • Automotive-grade ruggedness and fault tolerance
    • Extended AEC-Q100 Grade 0 qualification
    • Operation at –40°C to 175°C junction temperature
    • 3 to 24 V operating voltage range
    • High EMC/ESD immunity
    • Overtemperature indication

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APS12400LLHALT-0H1A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALT-1H1A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALT-1H2A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALU-0H1A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALU-1H1A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALU-1H2A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALX-0H1A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALX-1H1A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LLHALX-1H2A 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAA-0H1A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAA-0H2A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAA-1H1A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAA-1H2A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAATN-0H1A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAATN-0H2A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAATN-1H1A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS12400LUAATN-1H2A 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.
