ASEK-35-INT-01
The ASEK-35-INT-01 is a single-sensor interface board designed to connect compatible current sensors mounted on a demo board or integrated into a customer application through an external wire harness. It provides a flexible, universal hardware platform that simplifies development, programming, and evaluation across a wide range of supported current sensors. Because of its versatility, the ASEK-35-INT-01 is a highly recommended option for general sensor evaluation and in-system programming.
Product Details
Product Details
Top Features
Supported Sensors
A1367 - KT (SIP4)ACS37503 - KT (SIP4)
ACS37600 - LU (TSSOP8)
ACS37600K - OK (SIP4)
ACS37601 - KT (SIP4)
ACS37610-1 - LU (TSSOP8), OK (SIP4)
ACS37630 - OL (SOIC8)
ACS70310-11 - KT/OK (SIP4)
ACS70312 - KT (SIP4)
CT455 - LU (TSSOP8)
CT456 - LU (TSSOP8)
Documentation
ASEK-35 Hardware Selection Guide
ASEK-35 Software User Guide
ASEK-35 Programmer User Guide
Content

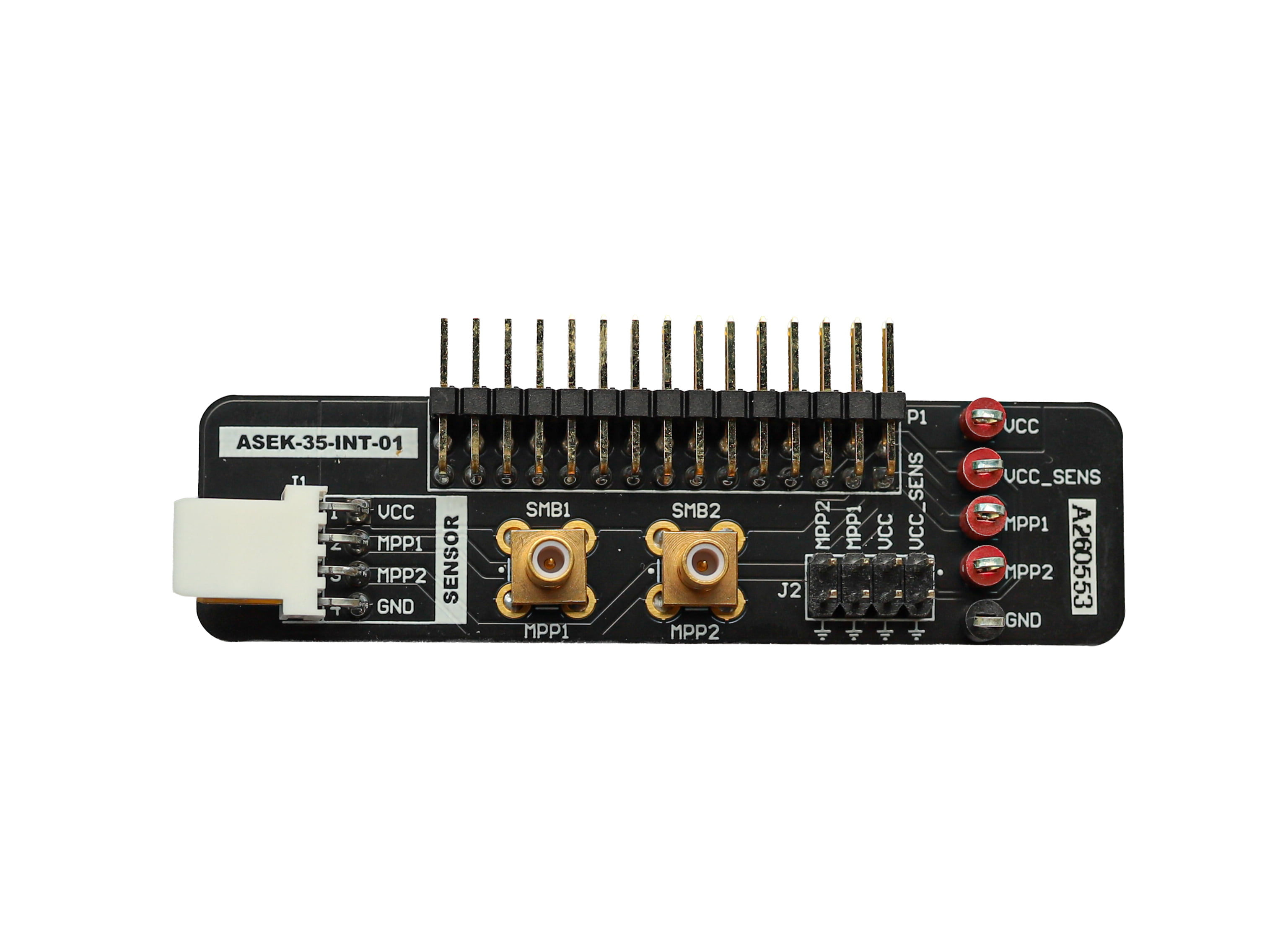

This interface board is designed for direct board-to-board connection to the ASEK-35 programmer through the 2×15-pin P1 header.
It includes a J1 connector (Molex 22-12-4042) for connecting a sensor through a wire harness. Compatible cable assemblies include the Molex KK254 series or any 100 mil 4-wire cable assembly. Refer to Table 1 in the ASEK-35 Hardware Selection Guide for supported wiring configurations. The ASEK-35-INT-01 provides clearly labeled access to ASEK-35 communication and measurement signals, simplifying sensor evaluation and connection to external test equipment.
The board also supports remote VCC sensing for VCC compensation through the VCC_SENSE input, which can be connected to the supply line near the sensor. Optional solder pads are provided on the bottom side of the PCB for application-specific circuitry such as VCC decoupling, pull-up resistors, and capacitive or resistive loads.
