Current Sensor ICs
ASIL C, 240kHz, Highest Accuracy Programmable Linear Sensor IC with Overcurrent and Overtemperature Detection
ACS37601
The ACS37601 is an advanced linear Hall-effect sensor IC for core-based current sensing, featuring ASIL C safety, low sensitivity error and offset, and a dedicated overcurrent/overtemperature pin. It offers reduced noise, fast response, wide bandwidth, and customer programmability for high-accuracy automotive applications.
Product Details
Product Details
Top Features
- ASIL C safety rating
- Ultralow thermal drift
- Sensitivity ±0.8%
- Offset ±5 mV
- Quick overcurrent and overtemperature fault output ideal for safety critical applications
- Industry-leading noise performance
- VCC operation: 3.3 and 5 V
- Very fast response time (2 μs) with 240kHz bandwidth
Target Application
Part Number Specifications and Availability
| Part # | Factory-Programmed Sensitivity (mV/G) | Programmable Sens Range (mV/G) | Output Mode | Nominal Vcc (V) | TA (°C) | Package | Samples |
|---|---|---|---|---|---|---|---|

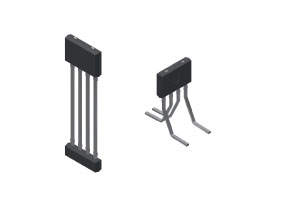

| Part #ACS37601LKTATN-0P5B5-C | Factory-Programmed Sensitivity (mV/G) 0.5 | Programmable Sens Range (mV/G)0.50 to 0.86 | Output ModeRatiometric | Nominal Vcc5 | TA (°C)-40 to 150 | Package4-Pin SIP | Sample Request Request Samples |
| Part #ACS37601LKTATN-001B5-C | Factory-Programmed Sensitivity (mV/G) 1 | Programmable Sens Range (mV/G)0.83 to 1.44 | Output ModeRatiometric | Nominal Vcc5 | TA (°C)--40 to 150 | Package4-Pin SIP |
Sample Request Request Samples |
