ASEK-35-INT-02

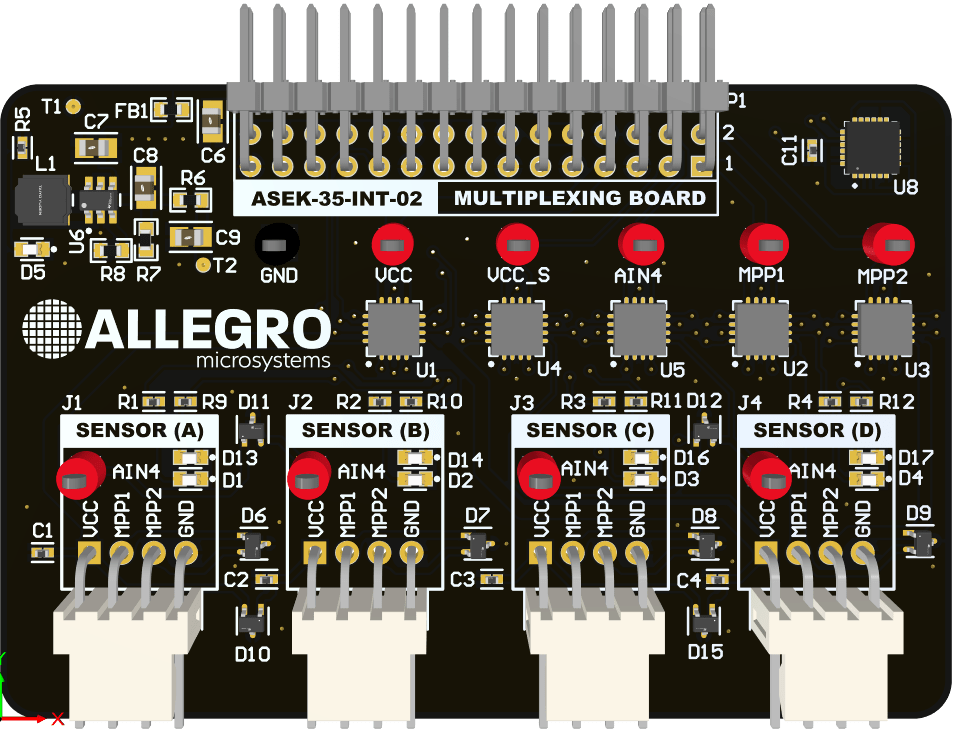

ASEK-35-INT-02 is a multiplexing interface board that enables programming of 4 devices in parallel. The board is designed to connect compatible current sensors mounted on a demo board or integrated into a customer application through an external wire harness. It provides a flexible, universal hardware platform that simplifies development, programming, and evaluation across a wide range of supported current sensors. Because of its versatility, the ASEK-35-INT-02 is a highly recommended option for in-system programming.
Product Details
Product Details
Top Features
Supported Sensors
A1367 - KT (SIP4)ACS37503 - KT (SIP4)
ACS37600 - LU (TSSOP8)
ACS37600K - OK (SIP4)
ACS37601 - KT (SIP4)
ACS37610-1 - LU (TSSOP8), OK (SIP4)
ACS37630 - OL (SOIC8)
ACS70310-11 - KT/OK (SIP4)
ACS70312 - KT (SIP4)
CT455 - LU (TSSOP8)
CT456 - LU (TSSOP8)
Documentation
ASEK-35 Hardware Selection Guide
ASEK-35 Software User Guide
ASEK-35 Programmer User Guide
Content
This interface board is designed for direct board-to-board connection to the ASEK-35 programmer through the 2×15-pin P1 header.
It includes four Molex (22-12-4042) connectors SENSOR (A)-(D) for connecting external sensors through a wire harness. Compatible cable assemblies include the Molex KK254 series or any 100 mil 4-wire cable assembly. Refer to Table 1 in the ASEK-35 Hardware Selection Guide for supported wiring configurations.
The board also supports remote VCC sensing for VCC compensation through the AIN4 input, which can be connected to the supply line near the sensor. Optional solder pards are provided on the bottom side of the PCB for application-specific circuitry such as VCC decoupling, pull-up resistors, and capacitive or resistive loads.
