A4952 and A4953: Full-Bridge DMOS PWM Motor Drivers

Product Image

ECAD Models
A4952 and A4953 Datasheets
Navigate

Description

Top Features

Packaging

Designed for pulse width modulated (PWM) control of DC motors, the A4952 and A4953 are capable of peak output currents to ±2 A and operating voltages to 40 V.

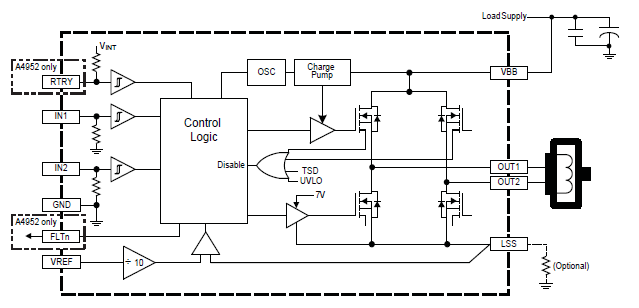

Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM control signals. Internal synchronous rectification control circuitry is provided to lower power dissipation during PWM operation.

Internal circuit protection includes overcurrent protection, motor lead short to ground or supply, thermal shutdown with hysteresis, undervoltage monitoring of VBB, and crossovercurrent protection.

The A4952 is provided in a low-profile 10-pin MSOP package (suffix LY) and the A4953 is provided in a low-profile 8-pin SOICN package. Both packages have an exposed thermal pad, and are lead (Pb) free, with 100% matte tin leadframe plating.

  • Low RDS(on) outputs
  • Overcurrent protection (OCP)
    • Motor short protection
    • Motor lead short to ground protection
    • Motor lead short to battery protection
    • Low Power Standby mode
    • Adjustable PWM current limit
    • Synchronous rectification
    • Internal undervoltage lockout (UVLO)
    • Crossover-current protection
    • Fault output (A4952 only)
    • Selectable retry (A4952 only)

    The A4952 is provided in a low-profile 10-pin MSOP package (suffix LY) and the A4953 is provided in a low-profile 8-pin SOICN package. Both packages have an exposed thermal pad, and are lead (Pb) free, with 100% matte tin leadframe plating.

     LY and LJ Combined
