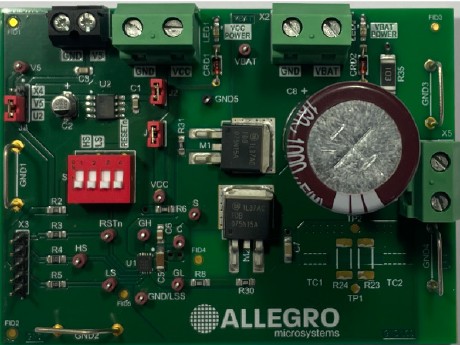

This board provides the basic components required to use the A89500 to drive a motor. The motor can be controlled via an externally supplied PWM signal input on the logic input terminals.
Product Details
Product Details
Top Features
- 2-layer board with 2 oz. copper and high temp FR4
- 10-lead DFN A89500GEJTR-T gate driver
- 2× fast switching, low-RDS(ON) MOSFETs in half-bridge configuration
- 5 V on-board voltage regulator
- High-current 3-way connector for motor connection
- High-current 2-way connector for supply connection
- 4-position DIP switch for manual control of logic inputs
Supported Products:
Content
- A89500 Evaluation Board
