A89500: Fast Switching 100 V Half-Bridge MOSFET Driver


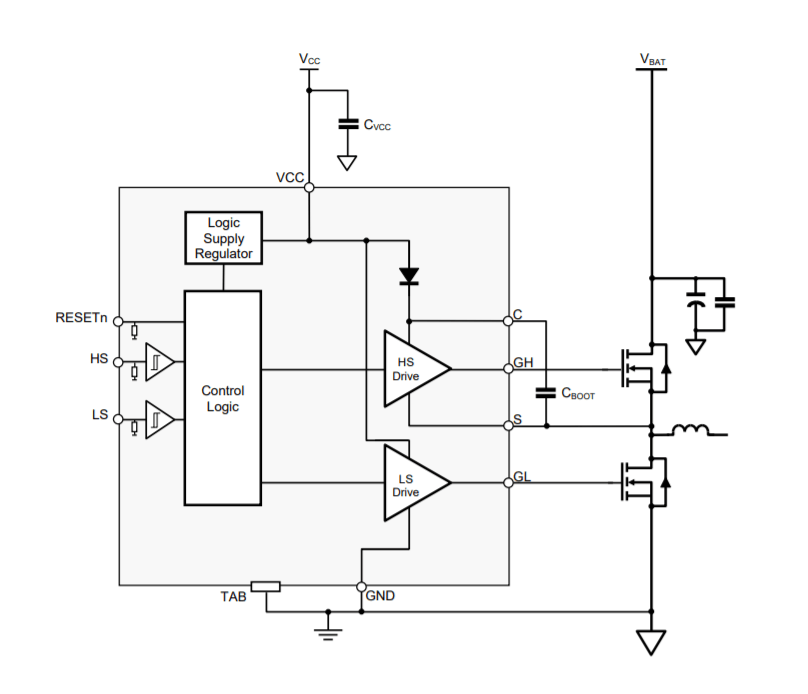

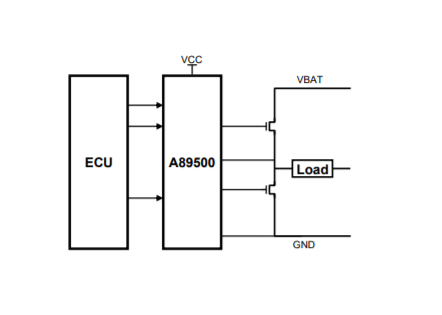

The A89500 is a fast-switching 100 V half-bridge N-channel MOSFET gate driver.  It is specifically designed for applications with high power inductive loads, such as brush DC motors, solenoids, and actuators and is compatible with 12 V, 24 V, and 48 V power networks. Internal logic prevents the gate drive outputs from turning on simultaneously, preventing cross-conduction. Each MOSFET is controlled by an independent logic-level input compatible with 3.3 V and 5V logic.

The A89500 can be placed in a low-power sleep mode by a third discrete input. It requires a single 8 to 15 V supply to power the gate drivers.  A89500 comes with both Automotive and ICC Grade and is packaged in a tiny 3 by 3 DFN to reduce PCB size.

Top Features

  • Operates with up to 100 V bridge supply
  • AEC-Q100 qualified (K version)
  • Integrated Boostrap Diode
  • Low-power sleep mode
  • Fast Switching

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Part Composition /
RoHS Data
Comments Samples Check Stock
APEK89500GEJ-01-T DEMO BOARD -20°C to 85°C No -- Contact your
local sales rep
Distributor Stock
A89500GEJTR-T 10-lead DFN -40°C to 105°C Yes View Data Contact your
local sales rep
Distributor Stock
A89500KEJSR 10-lead DFN -40°C to 150°C Yes View Data Contact your
local sales rep
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

EJ TDFN with exposed pad 10 contact

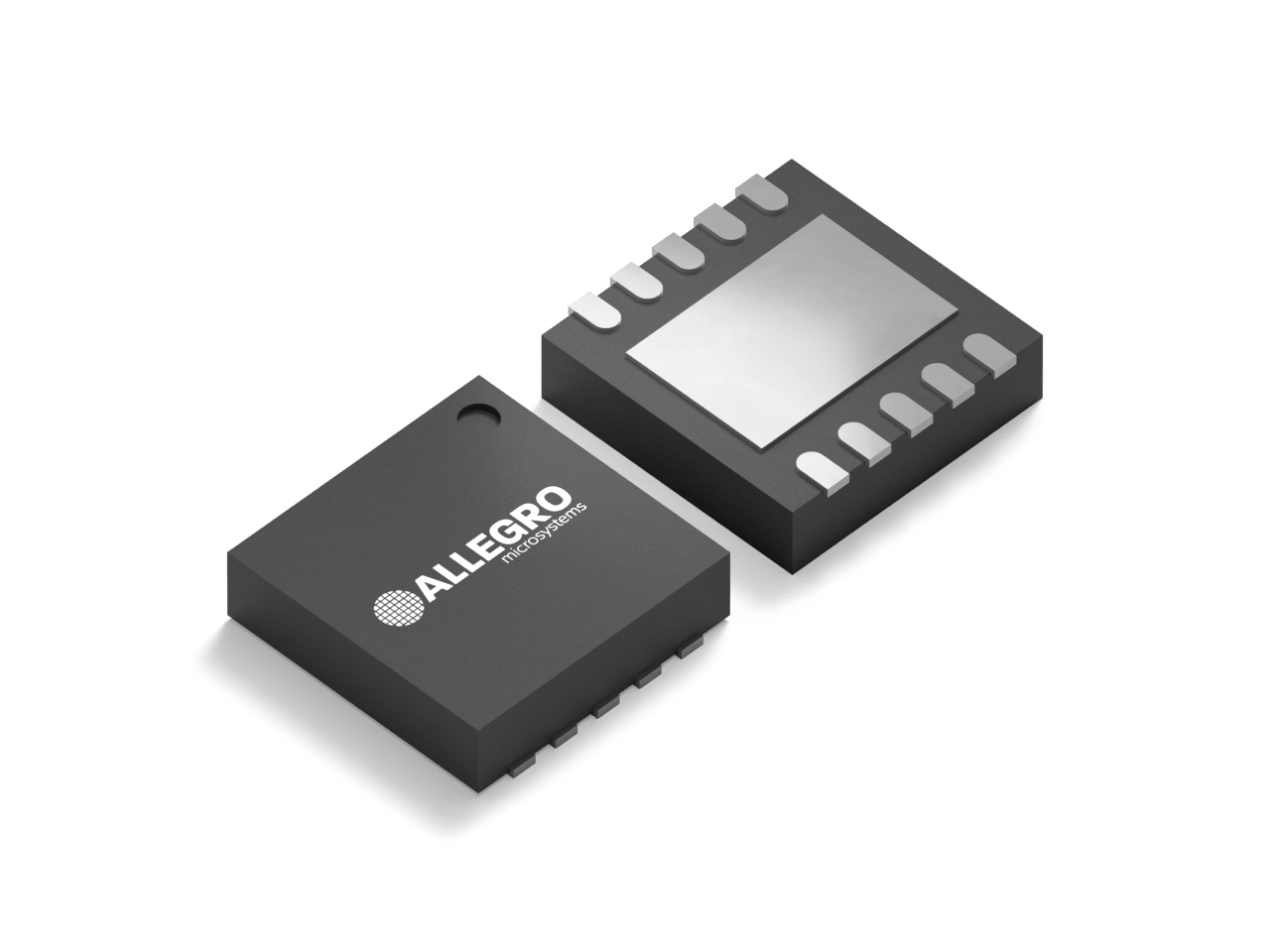

10 Lead DFN (suffix EJ)
