A80606: High Power LED Driver with Pre-Emptive Boost for Ultra-High Dimming Ratio and Low Output Ripple

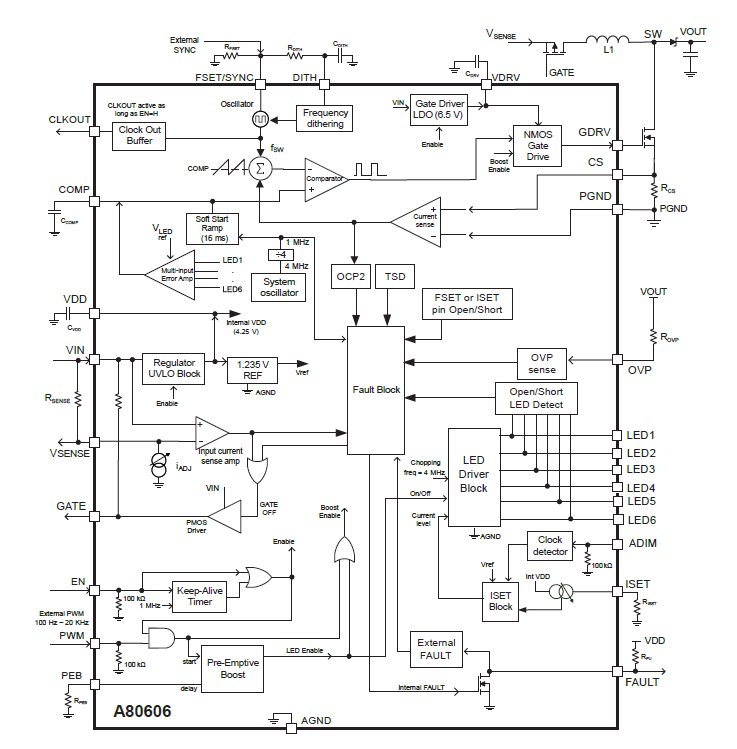

Description

A80606 extends Allegro's market-leading A8060x portfolio of LED backlight drivers. The device family is designed with an innovative and patented Pre-Emptive Boost (PEB) control, eliminating noise that is typically audible. PEB control substantially reduces Vout ripple and eliminates the common problem of audible noise from ceramic output capacitors during PWM dimming, while also requiring less output capacitance overall. Systems can achieve an LED brightness contrast ratio of 15,000:1 using PWM-only dimming at 200 Hz. A higher ratio of 150,000:1 is possible when using a combination of PWM and analog dimming.

Top Features

  • Patented Control Scheme Provides Industry-Best PWM Dimming Ratio
  • Completely Eliminates “Cap Singing” Noise
  • Low EMI solution to meet strict OEM EMC requirements
  • ASIl-B system-level support for ADAS Cluster user interface
  • Latest device increases output to over 1 Amp

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
A80606KEVJSR 48-lead QFN/MLP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A80606KEVJSR-1 48-lead QFN/MLP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Allegro 48-Pin QFN EV Package

Packaging

48-Pin 7 mm × 7 mm QFN with Wettable Flank
