Allegro's XtremeSense™ TMR technology
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
Have Questions? Let us help!
We're passionate about innovation. Reach out and you'll hear back from an expert shortly.
One of our solution experts will be in touch with you shortly. Keep reading to learn more about our industry leading solutions.

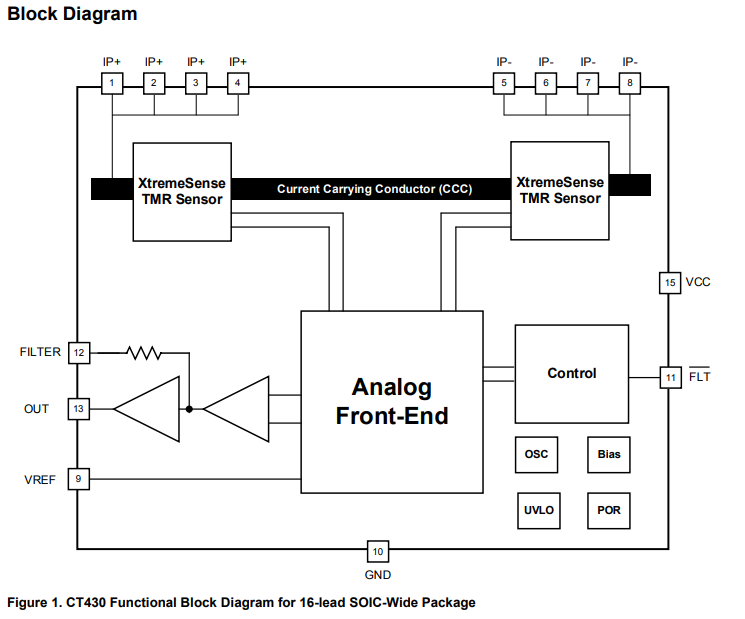

The CT430 (VCC = 5.0 V) offers high-accuracy current measurements with ultra-low noise, a fast 300ns response time, 5kV isolation, and an integrated current carrying conductor (CCC) for simplified design. Includes integrated overcurrent detection for enhanced system protection.
Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
| Document Type | Document Name |
|---|---|
| Application Note | CT43X Performance Overview |
| Application Note | What is XtremeSense TMR |
| Application Note | CT430 Power Measurement Module |
| Application Note | CT43X Design Recommendation |
| Application Note | Fuse Time vs. Current for the CT43X Contact Current Sensors |
| Application Note | Using the CT43X TMR Current Sensor in Power Distribution Units (PDUS) |
| Application Note | Package Thermal Resistance for Allegro Current Sensors with Integrated Conductors |
| Application Note | Glossary of Isolation-Related Terms for Integrated Current Sensors |
| Brochure | The Future of Sensing: XtremeSense™ TMR Technology |
| Brochure | Comfort Through Sustainability - Unlock the Power of Heat Pump Innovation |
| Brochure | DC Fast Charging: Faster and Farther |
| Guide | CT430-20AC Evaluation Board User Guide |
| Guide | CT430-50AC Evaluation Board User Guide |
| Document Type | Document Name |
|---|---|
| Webpage | Current Sensor Evaluation Boards Page |
