The A17802 evaluation kit provides an easy way to evaluate the Allegro A17802 integrated circuit (IC) using a computer running Microsoft Windows. The downloadable demonstration application provides a graphical user interface (GUI) that displays the measured angle from the A17802 and provides configuration control using Manchester or SPI protocols.
Product Details
Product Details
Top Features
The kit features a four-cycle coil design printed on the sensor board, a rotatable four-cycle target mounted atop the board, a microcontroller that decodes sensor data, and a Windows application downloadable from the Allegro software website
Content
The hardware includes:

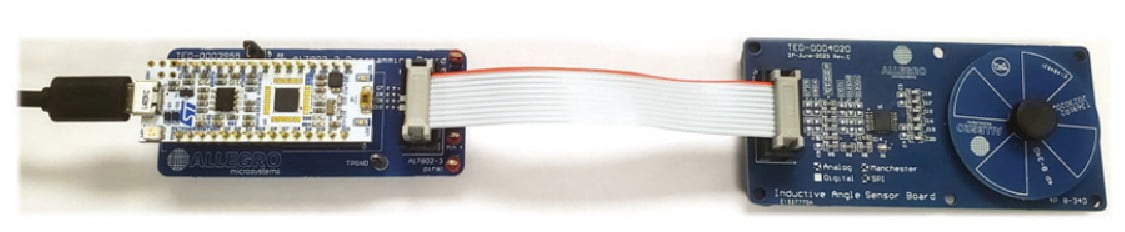

- STM Nucleo-L432KC microcontroller board (white board; see Figure 1, left)
- A17802 programming board (plugs into the microcontroller board)

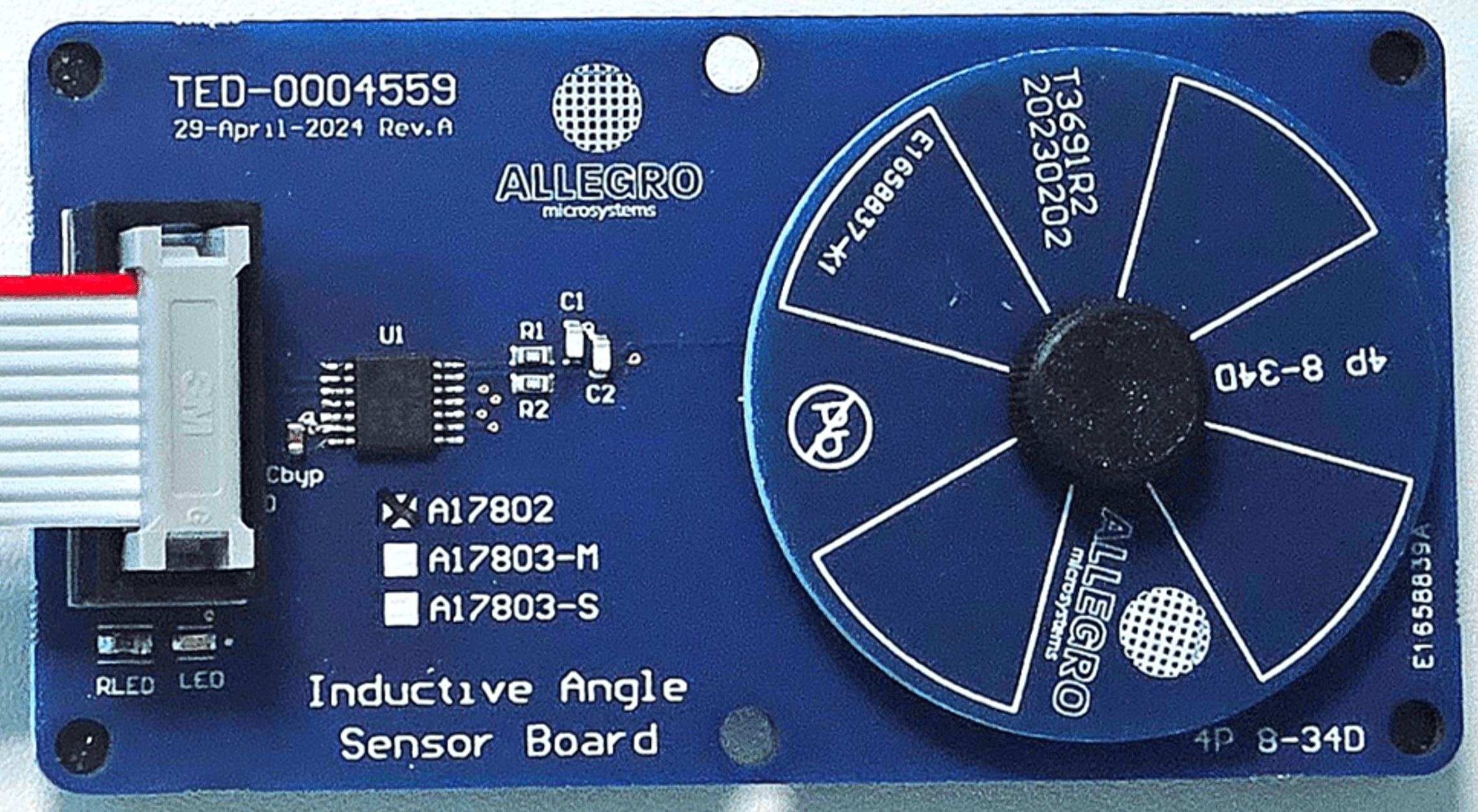

- A17802 sensor board (see Figure 1, right)
- Four-cycle inductive target (mounted to the sensor board)
- Ten-pin ribbon cable (see Figure 1, center)
- Micro-USB cable (connects the microcontroller board to a computer; see Figure 1, far left)
