Magnetic Speed Sensors
Two-Wire True Zero-Speed Miniature Differential Peak-Detecting Sensor IC with Continuous Calibration
A1642

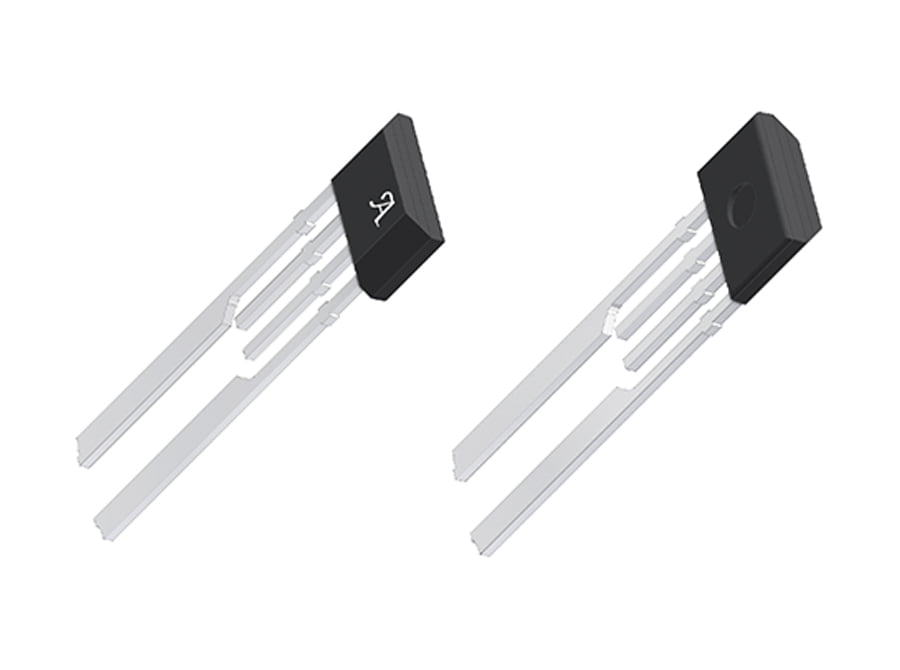

These parts are in production but have been determined to be NOT FOR NEW DESIGN. The A1642 is an optimized Hall-effect IC for true zero-speed digital ring-magnet sensing in two-wire applications. It features a dual-element sensor and sophisticated digital processing for air-gap independent switchpoints and running-mode calibration, providing speed and duty cycle information, ideal for ABS.
Product Details
Product Details
Top Features
- Running mode calibration for continuous optimization
- Single chip IC for high reliability
- Internal current regulator for 2-wire operation
- Precise duty cycle signal over operating temperature range
- Large operating air gaps
- Automatic Gain Control (AGC) for air gap independent switchpoints
- Automatic Offset Adjustment (AOA) for signal processing optimization
- True zero-speed operation
- Undervoltage lockout
- Wide operating voltage range
