APS11700, APS11760: Micropower Vertical and Planar Hall-Effect Switches

Allegro LH-UA Packaging

Description

Top Features

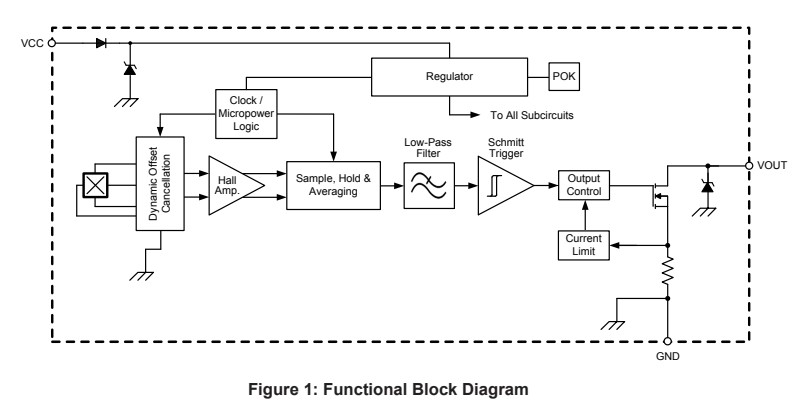

The APS11700/760 family of micropower Hall-effect switches adds automatic power management to Allegro’s APS11000/060 family of Hall-effect switches, enabling average supply current as low as 6µA. They are rugged enough for operation from batteries or unregulated supplies in harsh automotive and industrial environments. The power management happens in the background and is transparent to the host system, making them a drop-in upgrade for existing Hall-effect switches or a solid-state replacement for mechanical microswitches or reed switches. The APS11760 devices feature a vertical Hall-effect sensing element that is sensitive to magnetic flux parallel to the face of the IC package, mimicking the in-plane sensitivity of common reed switches.

These ICs are qualified to AEC-Q100 Grade 0. They can tolerate up to 40V and junction temperature up to 165°C. In addition, they are internally protected against over-voltage, reverse-battery, load-dump, output short-circuits, human-body-model ESD up to ±11kV, and other common automotive EMC conditions.

APS11700/760 devices come preconfigured with your choice of magnetic sensitivity, thresholds, and polarity. There is also a choice of active-high or active-low output for ease of integration into electronic subsystems.

Two package styles provide a choice of through-hole or surface mounting. Package type LH is a modified 3-pin SOT23W surface-mount package, while package type UA is a 3-pin ultra mini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

ASIL Logo

  • Solid-state upgrade for microswitches/reed switches
  • Ultralow power consumption
  • Planar or vertical Hall-effect sensing
  • 3.3 to 24 V operation; up to 40V absolute maximum
  • Automotive-grade ruggedness and fault tolerance
    • AEC-Q100 Grade 0 qualification
    • Operation at –40°C to 165°C junction temperature
    • Protected against over-voltage, load-dump, reverse battery, output shorts, and other EMC stresses
  • Selectable magnetic thresholds & omnipolar or unipolar activation
  • Open-drain output with choice of output polarity

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APS11700LLHALT-0PL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11700LLHALX-0PL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11700LUAA-0PL 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALT-0PL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALT-0SL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALT-0SL1 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALT-3PL2 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALX-0PL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALX-0SL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALX-0SL1 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LLHALX-3PL2 3-lead SOT -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11760LUAA-0PL 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

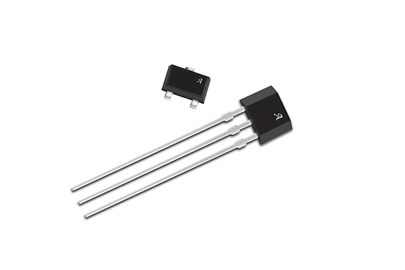

Allegro LH and UA packaging

Packaging

Package type LH is a modified 3-pin SOT23W surface-mount package, while package type UA is a 3-pin ultra mini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

LH Package Documentation

UA Package Documentation
