A4956: Full-Bridge PWM Gate Driver

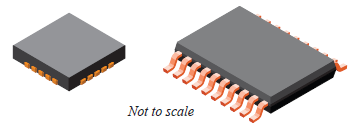

A4955, A4956, A5957 Full Bridge PWM Driver Gate and Gate Driver Packaging Image

A4956 Datasheet
Navigate

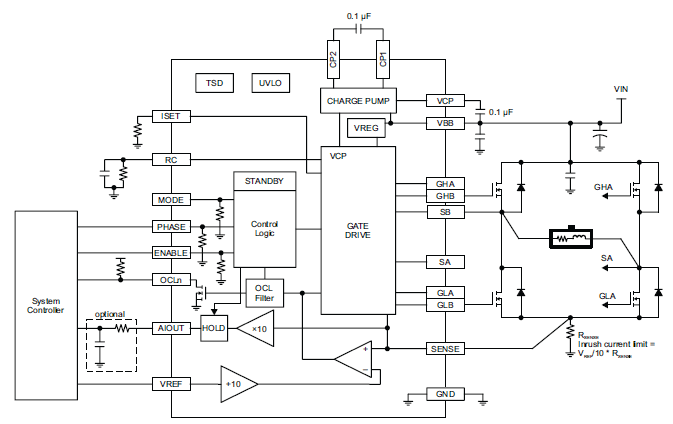

Description

Top Features

Designed for pulse-width-modulated (PWM) control of DC motors, the A4956 is capable of 50 V operation and provides gate drive for an all N-channel external MOSFET bridge.

Input terminals are provided for use in controlling the speed and direction of a DC motor with externally applied PWM control signals. Internal synchronous rectification control circuitry is provided to lower power dissipation during PWM operation.

Internal circuit protection includes VDS protection, thermal shutdown with hysteresis, undervoltage monitoring of VBB, and crossover-current protection.

The A4956 is supplied in a low-profile 4×4 mm, 20-contact QFN package (suffix “ES”) and a 20-lead eTSSOP (suffix “LP”), both with exposed thermal pad.

  • PHASE/ENABLE/MODE control logic
  • Overcurrent indication
  • Adjustable off-time and blank-time
  • Adjustable current limit
  • Adjustable gate drive
  • Synchronous rectification
  • Internal UVLO
  • Crossover-current protection
  • MOSFET VDS protection
  • Voltage output proportional to load current
  • Decay-mode selection for external PWM
  • A4956K is AEC-Q100 Grade 1 qualified
  • Commercial temperature grade (A4956G: –40°C to 105°C)
  • Automotive temperature grade (A4956K: –40°C to 125°C)
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
APEK4956ES-01-T DEMO BOARD -40°C to 85°C No -- Contact your
local sales rep		 Check
Distributor Stock
A4956GESTR-T 20-lead QFN -40°C to 105°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A4956GLPTR-T 20-lead TSSOP -40°C to 105°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A4956KLPTR-T 20-lead TSSOP -40°C to 125°C Yes View Data Not for new design Contact your
local sales rep		 Check
Distributor Stock
APEK4956LP-01-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.
