A5988: Quad DMOS Full-Bridge PWM Motor Driver

Product Image

A5988 Datasheet
Navigate

Description

Top Features

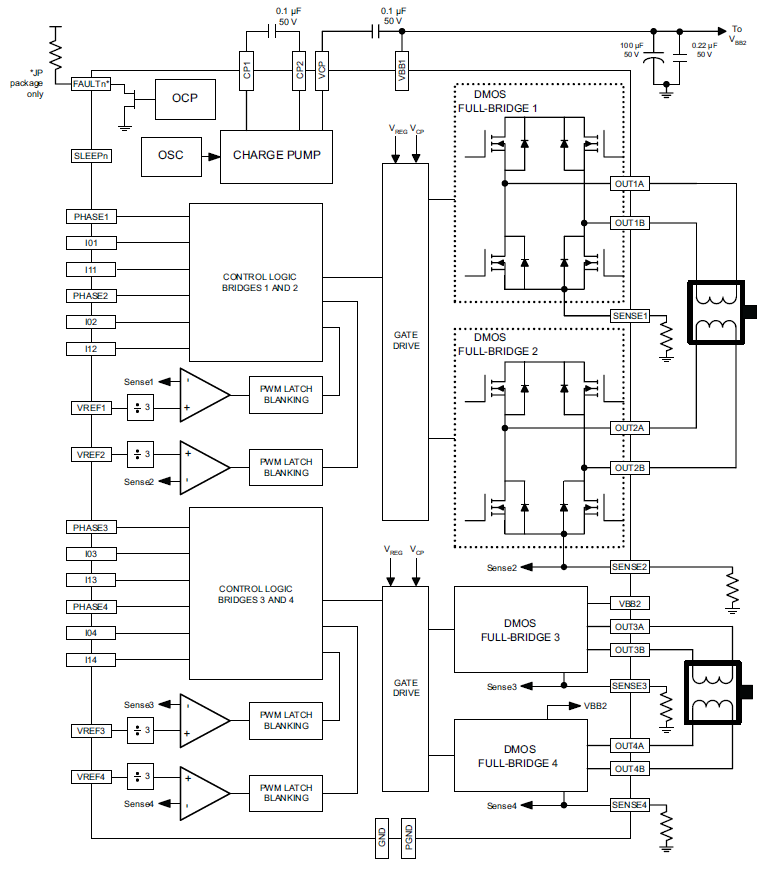

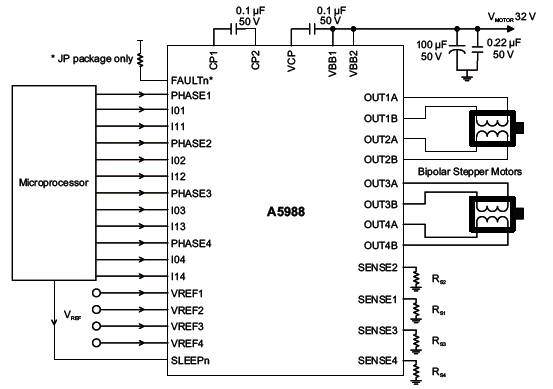

The A5988 is a quad DMOS full-bridge driver capable of driving up to two stepper motors or four DC motors. Each full-bridge output is rated up to 1.6 A and 40 V. The A5988 includes fixed off-time pulse-width modulation (PWM) current regulators, along with 2-bit nonlinear DACs (digital-to-analog converters) that allow stepper motors to be controlled in full, half, and quarter steps, and DC motors in forward, reverse, and coast modes. The PWM current regulator uses the Allegro™ patented mixed decay mode for reduced audible motor noise, increased step accuracy, and reduced power dissipation.

Internal synchronous rectification control circuitry is provided to improve power dissipation during PWM operation. Protection features include thermal shutdown with hysteresis, undervoltage lockout (UVLO) and crossover-current protection. Special power-up sequencing is not required.

The A5988 is supplied in two packages, EV and JP, with exposed power tabs for enhanced thermal performance. The EV is a 6 mm × 6 mm, 36-pin QFN package with a nominal overall package height of 0.90 mm. The JP is a 7 mm × 7 mm 48-pin LQFP. Both packages are lead (Pb) free, with 100% matte tin leadframe plating.

  • 40 V output rating
  • 4 full bridges
  • Dual stepper motor driver
  • High-current outputs
  • 3.3 and 5 V compatible logic
  • Synchronous rectification
  • Internal undervoltage lockout (UVLO)
  • Thermal shutdown circuitry
  • Crossover-current protection
  • Overcurrent protection
  • Low-power sleep mode
  • Low-profile QFN package
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
A5988GEVTR-1-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5988GJPTR-1-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5988GJPTR-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
A5988GEVTR-T 36-lead QFN/MLP -40°C to 105°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Quad DMOS full-bridge motor driver packaging

Packaging

The A5988 is supplied in two packages, EV and JP, with exposed power tabs for enhanced thermal performance. The EV is a 6 mm × 6 mm, 36-pin QFN package with a nominal overall package height of 0.90 mm. The JP is a 7 mm × 7 mm 48-pin LQFP. Both packages are lead (Pb) free, with 100% matte tin leadframe plating.

EV Package Documentation

JP Package Documentation

Design Support Tools

A5988JP Demo Board Schematic
A5988EV Demo Board Schematic
