DMOS Dual Full-Bridge PWM Motor Driver


A5995 Product Image


Top Features


The A5995 is designed to operate at voltages up to 40 V while driving two DC motors at currents up to 3.2 A. The A5995 includes a fixed off-time pulse-width modulation (PWM) regulator for current control. The DC motors are controlled using standard PHASE and ENABLE signals. Fast or slow current decay is selected via the MODE pin.

Internal synchronous rectification control circuitry is provided to improve power dissipation during PWM operation.

Protection features include thermal shutdown with hysteresis, undervoltage lockout (UVLO), crossover-current and short-circuit protection. Special power-up sequencing is not required.

The A5995 is supplied in a leadless 6 mm × 6 mm × 0.9 mm, 36-pin QFN package with exposed power tab for enhanced thermal performance. The package is lead (Pb) free, with 100% matte tin leadframe plating.

  • 40 V output rating
  • Two 3.2 A DC motor drivers
  • Synchronous rectification
  • Internal undervoltage lockout (UVLO)
  • Thermal shutdown circuitry
  • Crossover-current protection
  • Very thin profile QFN package
  • Overcurrent protection
  • Low-power sleep mode
  • 3.3 and 5 V compatible logic supply

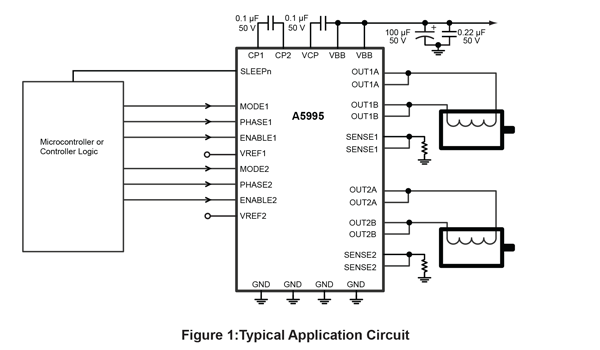

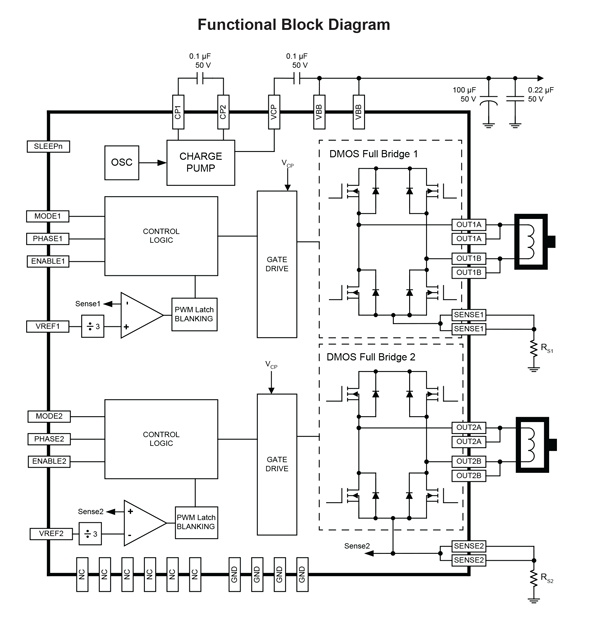

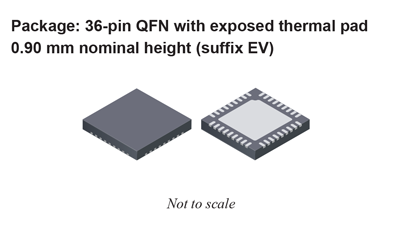

36-pin QFN with exposed thermal pad 0.90 mm nominal height (suffix EV)
