The APM81815 simplifies power supply design for 48V automotive systems, offering a high level of integration, low EMI, and selectable output voltages (3.3V, 5V, 5.35V, or 12V).
Product Details
Product Details
Top Features
- VIN operating range: 5 to 72 V
- 1.5A continuous output current
- Integrated Vin and Boot Cap to reduce component count and achieve ultra-low EMI

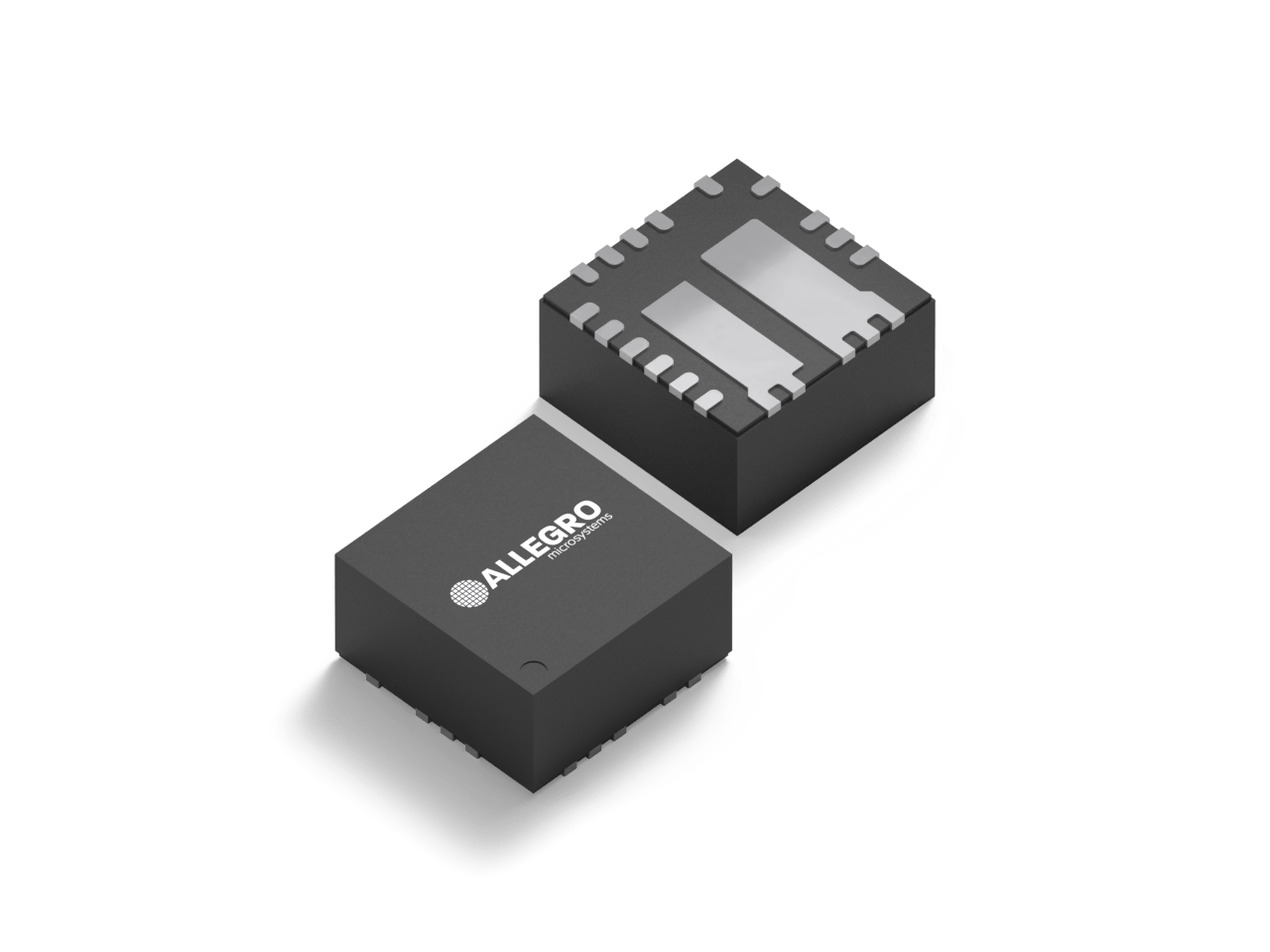

- Thermally enhanced and space saving 4 mm × 4 mm × 2.1 mm wettable flank QFN package
- 28 μA no-load quiescent current (48 VIN to 12 VOUT)
- 2.15 MHz internally fixed and adjustable from 400 kHz to 2.4 MHz
