Current Sensors Innovations

graph

Highest DC Working Voltage in SOIC16 Package!

Our packages have the highest working voltages in SOIC-16 footprint.

Features:

  • Working voltages up to 1600 VDC
  • Small footprint SOIC-8 and SOIC-16 packages
  • Basic and reinforced isolation

    • Benefits:

  • Higher power density
  • Increased efficiency via higher system voltages

    • Applications:

    Solar inverters, hybrid electric vehicles, telecom power supplies, HVAC, VFDs and other drives, DC-DC conversion.

    Devices:

    ACS724, ACS725, ACS720, ACS732, ACS733




    Over-Current Detection



    Over-current Detection

    Our current sensors include fast over-current detection in addition to a precision analog output.

    Features:

  • Open-drain fault pin with microsecond response time
  • High level of integration in a single IC
  • Compact, SOIC-8 and SOIC16 footprints

    • Benefits:

  • Cost-effective and easy to use
  • Reduced design complexity and BOM
  • Enhance reliability and protection for FETs and IGBTs by avoiding current out of range events

    • Applications:

    Overcurrent detection, server monitoring and protection, Class D amplifiers, IOT applications, power supply protection, telecom equipment, motor control, VFDs and other drives.

    Devices:

    ACS709, ACS710, ACS711, ACS71240, ACS720, ACS732, ACS733, A1365




    ​

    A Discrete Alternative to Bulky Current Transformers

    High-speed integrated sensors are the smart alternative to bulky current transformers (CTs). Low-profile SOIC packages withstand vibration and fit in small spaces where CTs cannot!

    Features:

  • High-speed, low-latency analog output
  • Differential sensing topology
  • Small QFN, SOIC-8 and SOIC-16 footprints

    • Benefits:

  • Fast-response time and low latency for peak current tracking, and cycle-by-cycle current control
  • Reliability in the presence of external magnetic fields
  • Increased integration in a low-profile, compact footprint

    • Applications:

    Peak current tracking, on-board Battery Chargers, power factor correction, DC-DC converters, 12V-48V servers, telecom power supplies.

    Devices:

    ACS730, ACS732, ACS733, ACS70331




    Highest Ambient Temperature Ratings

    We have the broadest family of integrated current sensors with ambient temperature ratings up to 150°C! With almost twenty “L-Temp” current sensors in our growing portfolio you’re sure to find robust current sensors for all automotive and industrial needs.

    Features:

  • Integrated current sensors with the highest ambient temperature ratings (TA)

    • Benefits:

  • Reduce system cooling requirements
  • Robust sensing solution in high heat applications

    •

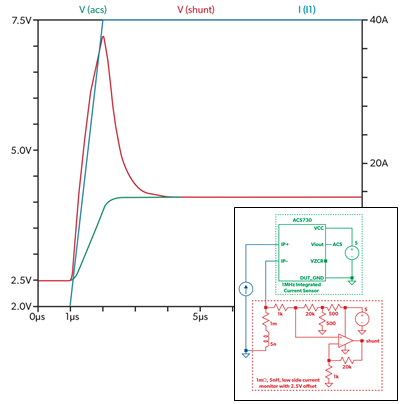

    Non-Contact Sensing Provides Immunity to High-Voltage Transients (dv/dt) and Fast Current Spikes (di/dt)

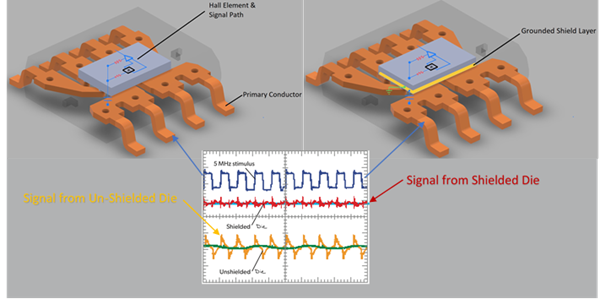

    Patented on-chip shield circuitry reduces output errors due to high-voltage switching (high dv/dt). Additionally, the Hall-effect sensing method is immune to inductance spikes from high di/dt events, unlike most shunt plus op-amp solutions.

    Features:

  • Patented on-chip shield
  • Non-contact sensing methodology

    • Benefits:

  • Inherent immunity to current and voltage transients
  • Reduced “blank time” after switching cycle

    • Applications

    Power factor correction, DC-DC converters, inverters, motors control, VFDs and other drives.

    Devices:

    ACS709, ACS710, ACS711, ACS71240, ACS720, ACS724, ACS725, ACS730, ACS732, ACS733



    ​




    The Most Accurate Open-Loop Field Sensor

    The ACS70310’s innovative signal path and final test solutions result in the most accurate field sensor on the market for core-based current sensing.

    Features:

  • Lowest offset and sensitivity drift over temperature

    • Benefits:

  • Increase system accuracy over temperature

    •
    ​
    ​

    Fast Response Time … Zero Undershoot!

    Features:

  • Patented signal path architecture to eliminate undershoot

    • Benefits:

  • Protect expensive IGBTs, MOSFETS and SiC-FETS by detecting in-rush currents and short circuits faster than the competition
  • Improve control with reduced response time and phase delay

    • Applications:

    Inverters, traction inverters, integrated belt start generators (IBSG), e-Bikes, bus bar measurement, forklift and other industrial transportation.

    Devices:

    ACS70310, A1363, A1365, A1366, A1367
