1MHz Bandwidth Contactless Current Sensor with Common Mode Field Rejection and <1% Total Error
CT452
These parts are in production but have been determined to be NOT FOR NEW DESIGN. The CT452 is a high-bandwidth, low-noise, zero-loss contactless current sensor using XtremeSense™ TMR technology. It provides a linear analog output with <±1.0% total error, features over 90% immunity to stray magnetic fields, <300 ns response time, and includes a noise reduction filter.
Product Details
Product Details
Top Features
- CT452 (5.0 V version)
- Integrated Contactless Current/Field Sensor
- Linear Analog Output Voltage
- Common Mode Field Rejection: -50 dB
- Total Error Output: ≤ ±1.0%, -40°C to +125°C
- 1 MHz Bandwidth
- Response Time < 300 ns
- VOUT – VREF Error < 1.0% FS (Max)
- High Signal-to-Noise Ratio (SNR): .65 dB
- Supply Voltage: 4.75 V to 5.50 V
- Filter Pin to Reduce Noise on Output
- AEC-Q100 Grade 1

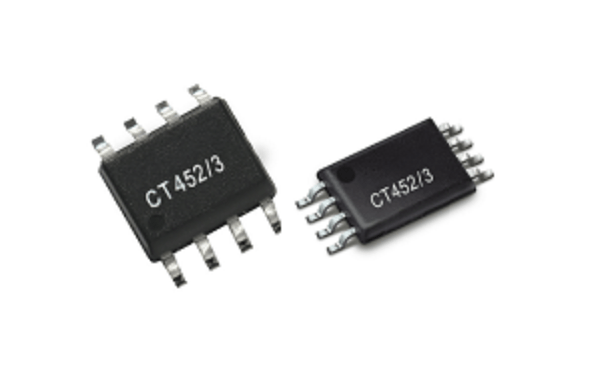

- Package Options
- 8-lead SOIC
- 8-lead TSSOP
