Two-Wire, Differential, Vibration-Resistant Sensor IC with Speed and Direction Output

ATS19510

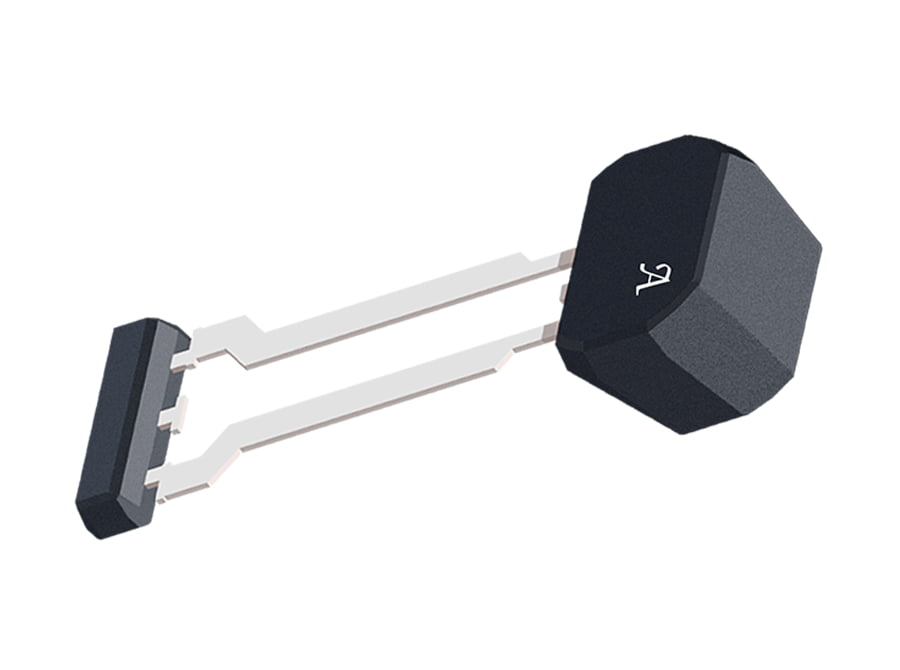

ATS19510 Product Image

The ATS19510 provides robust speed and direction sensing for automotive and industrial transmission applications, featuring a two-wire interface, advanced vibration detection algorithms, and an integrated back-bias magnet.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings ATS19510 ECAD Model Type Image

Top Features

Packaging

  • EMC compliance using integrated protection components and advanced IC design methodology
    • Immunity to harsh automotive transients such as switching inductive loads
  • Advanced algorithm options capable of withstanding full range sudden and dynamic air gap shifts
  • Two-wire, pulse-width output protocol
  • Highly configurable output protocol options
  • Speed and direction information of target
  • Vibration tolerance
    • Small signal lockout for small amplitude vibration
    • Proprietary vibration detection algorithms for large amplitude vibration
  • Air-gap-independent switchpoints
  • Undervoltage lockout
  • True zero-speed operation
  • Wide operating voltage range
  • Single chip sensing IC for high reliability
  • Robust test-coverage capability with Scan Path and IDDQ measurement
  • Integrated back-biasing magnet

The ATS19510 is available in a lead (Pb) free 3-pin SIP package (suffix SN) with tin-plated leadframe.
