APS11202: Hall-Effect Switch for Automotive, Consumer, and Industrial Applications

Allegro LH-UA Packaging

Description

Top Features

Typical Applications

Packaging

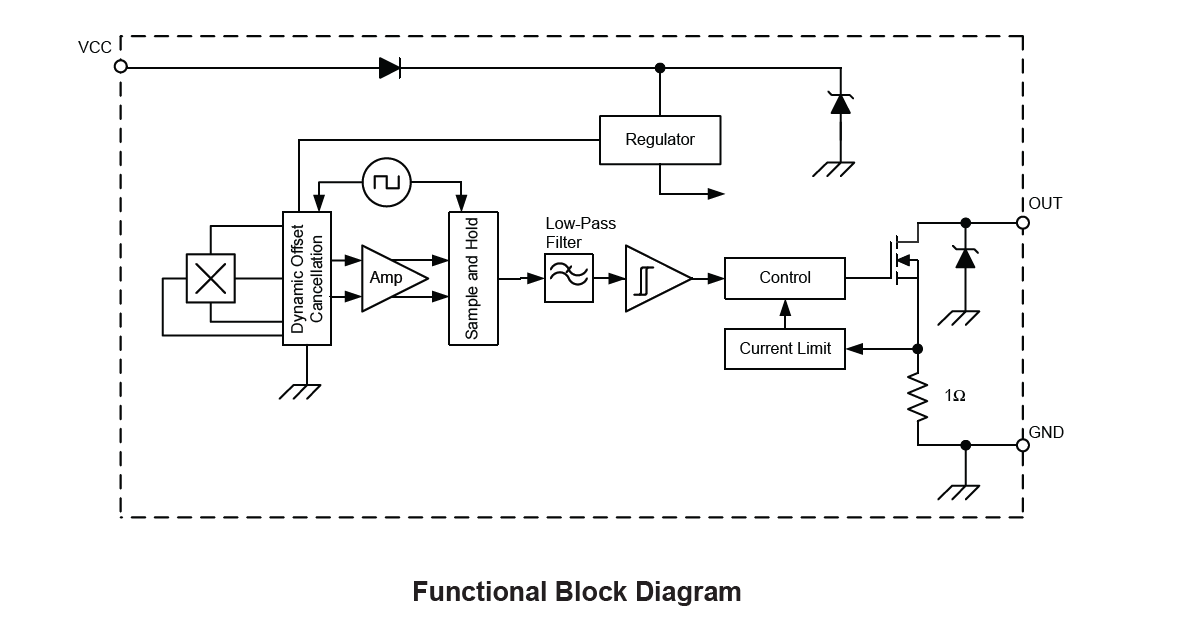

The APS11202 Hall-effect switch is a temperature stable suited for operation over extended temperature ranges (up to 150°C). High temperature performance is made possible through dynamic offset cancellation. This monolithic device includes; a voltage regulator, a Hall voltage generator, a small-signal amplifier, chopper stabilization, a Schmitt trigger, and a short-circuit protected open-drain output to sink up to 25 mA. A south polarity magnetic field of sufficient strength is required to turn the output on. An onboard regulator permits operation with supply voltages in the range of 3 to 24 V. Two package styles provide a magnetically optimized package for most applications: type LH is a miniature SOT23W low-profile surface-mount package, and type UA is a three-pin SIP for through-hole mounting. Both packages are lead (Pb) free with 100% matte-tin leadframe plating.

  • Resistant to physical stress
  • Superior temperature stability
  • Output short-circuit protection
  • Operation from unregulated supply
  • Reverse battery protection
  • Solid-state reliability
  • Small package size
  • AEC-Q100 automotive qualified
  • Industrial motor/encoders
  • Commutation/index sensing
  • BLDC motors
  • Fan motors
  • Power tools
  • Home applications
  • Industrial equipment
Allegro LH-UA Packaging

Two package styles provide a magnetically optimized package for most applications: type LH is a miniature SOT23W low-profile surface-mount package, and type UA is a three-pin SIP for through-hole mounting. Both packages are lead (Pb) free with 100% matte-tin leadframe plating.
