ACS732 and ACS733: 1 MHz Bandwidth, Galvanically Isolated Current Sensor IC in SOIC-16 Package

ACS732-3 Product image

Description

Top Features

The ACS732 and ACS733 current sensor family provides a 1MHz bandwidth with lightning fast 210nS response time sensing for AC or DC current sensing in automotive, industrial, commercial and communications systems. The device is designed for high frequency switching applications and can be used to replace high frequency current transformers.

The ACS732 and ACS733 can reduce overall BOM cost and PCB area while increasing quality in customer applications, making it superior to larger, bulky current transformers. Typical applications include power supplies DC/DC converters and chargers for industrial and automotive markets. This product family is provided in two version of the SOIC16W wide body package. The ‘LA’ package version provides a 3600VRMS 60 second isolation rating and can be used on voltage rails as high as 616V AC, RMS or 870Vpk or VDC. The ‘MA’ package version provides an industry leading 4800VRMS 60 second isolation rating and can be used on voltage rails as high as 1097VRMS or 1550Vpk or VDC.

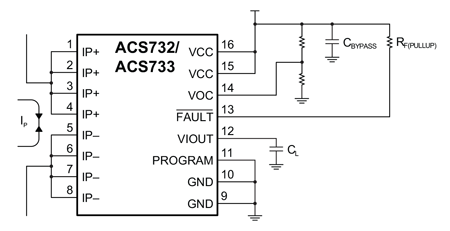

The wide body SOIC-16 package allows for easy implementation. Applied current flowing through the copper conduction path generates a magnetic field that is sensed by the IC and converted to a proportional voltage. Current is sensed differentially in order to reject external common-mode fields.

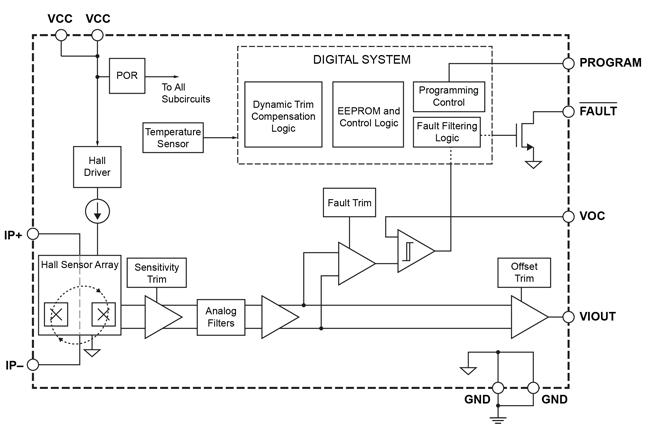

Device accuracy is optimized through the close proximity of the magnetic field to the Hall transducer and Allegro factory programming after packaging. The output of the device has a positive slope when an increasing current flows through the primary copper conduction path (from pins 1 thru 4 to pins 5 thru 8), which is the path used for current sensing. The internal resistance of this conductive path is typically less than 1 mΩ, providing very low power loss, increasing efficiency in customer applications.

The ACS732 and ACS733 surface-mount SOIC-16 wide-body package is plated with 100% matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly processes. Internally, the device is lead-free. These devices are fully calibrated prior to shipment from the Allegro factory.

  • AEC-Q100 automotive qualified
  • High bandwidth, 1 MHz analog output
  • Differential Hall sensing rejects common-mode fields
  • High-isolation SOIC16 wide body package provides galvanic isolation for high-voltage applications
  • Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design
  • UL60950-1 (ed. 2) certified
    • Dielectric Strength Voltage = 3.6 kVRMS
    • Basic Isolation Working Voltage = 616 VRMS
  • Fast and externally configurable overcurrent fault detection
  • 1 mΩ primary conductor resistance for low power loss and high inrush current withstand capability
  • Options for 3.3 V and 5 V single supply operation
  • Output voltage proportional to AC and DC current
  • Factory-trimmed sensitivity and quiescent output voltage for improved accuracy
  • Nearly zero magnetic hysteresis
  • Ratiometric output from supply voltage

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
ACS732KLATR-20AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS732KLATR-40AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS732KLATR-65AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS732KLATR-65AU-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS732KLATR-75AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS732KMATR-65AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ASEK732KLA-40B-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep
Check
Distributor Stock
ACS733KLATR-20AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS733KLATR-20AB-T-H 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS733KLATR-40AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS733KLATR-40AU-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS733KLATR-65AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ACS733KMATR-65AB-T 16-lead SOIC -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
ASEK733KLA-20B-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep
Check
Distributor Stock
ASEK733KLA-40B-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

ACS732/ACS733 Current Sensor Package Image

Packaging

The ACS732 and ACS733 surface-mount SOIC-16 wide-body package is plated with 100% matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly processes. Internally, the device is lead-free. These devices are fully calibrated prior to shipment from the Allegro factory.

LA Package Documentation

MA Package Documentation

Allegro MicroSystems, LLC provides Gerber files for reference only. Any material, information, or instructions are provided AS IS without warranty of any kind. It is the responsibility of the User(s) to optimize any Printed Circuit Board (PCB) layout, as well as the selection of any components, for the specific application of the User(s).

Featured Third Party Boards and Tools


PWR Meter 3 Demo Board

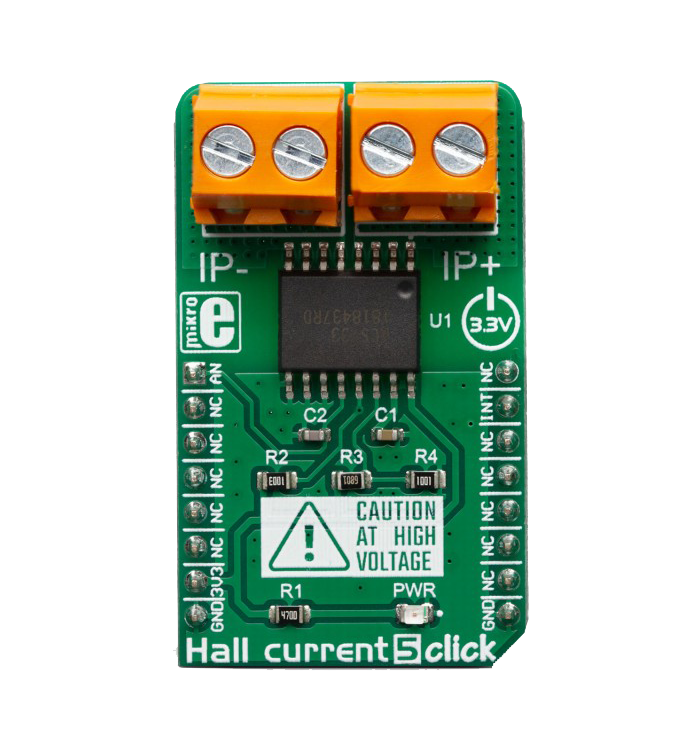

Hall Current 5 Click is a very accurate electric current measurement Click board™ based on the ACS733 IC. This IC is a galvanically isolated current sensor, which utilizes the Hall-effect principle. Its most distinctive feature is its very low series resistance of only 1 mΩ, which makes this device a nearly-perfect ammeter.
