ATS16351: Self-Calibrating TPOS GMR Camshaft Speed Sensor IC with Integrated EMC Components

SM Package for Crankshaft Position Sensors featuring TPOS technology

ATS16351 ECAD Model
ATS16351 Datasheet
Navigate

Description

Top Features

Packaging

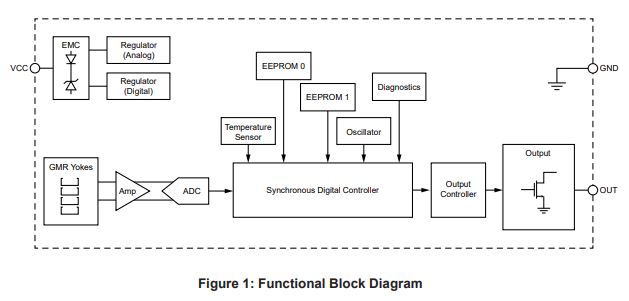

The ATS16351 is a true power-on state (TPOS) camshaft sensor that incorporates a back-biasing magnet, advanced fully synchronous digital IC, and EMC protection circuit in a single sensing solution. Incorporating a GMR bridge with an optimized custom magnetic circuit, the ATS16351 IC switches in response to magnetic signals induced by a ferromagnetic target. Ideal for use in automotive applications, signal processing is used to provide zero-speed performance independent of air gap.

Integrated EMC components in the ATS16351 can eliminate the need for external protection, all while achieving world-class stray field immunity. With a number of factory programmable options, the ATS16351 allows for performance optimization, saving users design time and system cost.

  • GMR sensing technology
  • Stray field immunity
  • Extended air gap operation
  • True Power On State (TPOS) operation
  • Integrated EMC components
  • Allegro Target Profile Diagnostics
SM Package for Crankshaft Position Sensors featuring TPOS technology

3-pin (suffix SM)

SM Package Documentation
