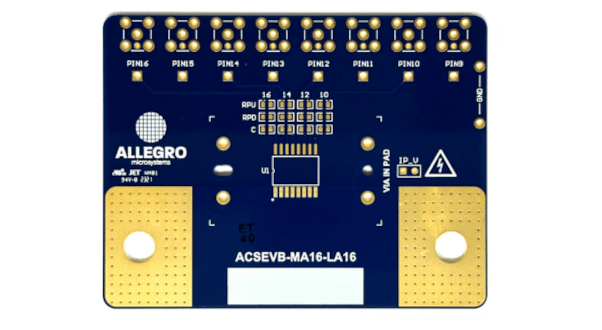

Bare evaluation boards offer a method for evaluating Allegro current sensors in a lab environment. This document describes the use of the MA/LA/SW current sensor evaluation board.This evaluation board (ACSEVB-MA16-LA16, TED-0004111) is intended for use with any MA, LA or SW package (16-pin SOIC-W) Allegro Hall-based or TMR based current sensors.
Product Details
Product Details
Top Features
- Enhanced thermal performance:
- 6-layer PCB with 2 oz copper weight on all layers
- Nonconductive filled Via-In-Pad used
- High performance FR4 material with 180°C glass
transition temperature
- Flexible layout for user installed connection points
- Standard Keystone test points
- SMA/SMB connector
- 2-pin headers
- Integrated current loop resistance can be measured directly on the evaluation board after test point installation; voltage drop can be measured for approximating power loss in the package.
Supported Products:
Content
- NOTE: It is up to the user to assemble the board with the desired current sensor and supporting circuitry. This board does not come populated with an Allegro current sensor or other components.
- Recommended supporting circuitry for all compatible current sensor are listed in the Supporting Circuitry section below.
