ACS772: 200kHz, 1.5% Max Tolerance, 100 µΩ Internal Resistance Module-alternative Current Sensor for High Current and High Voltage Applications

CA/CB 5 pin

ACS772 Datasheet
Navigate

Description

Top Features

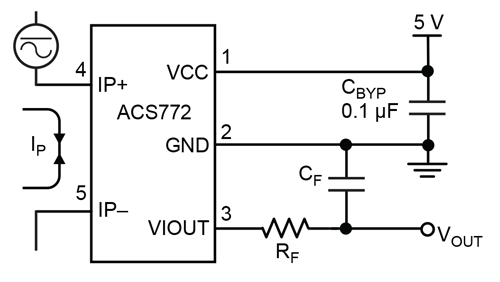

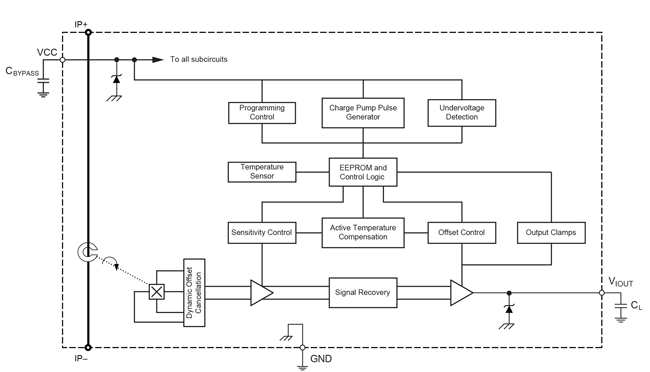

The ACS772 is an automotive grade, 200KHz Bandwidth Current Sensor IC in Allegro’s proprietary CB package. It offers a wide current sensing range (50A to 400A) and very low power loss achieved by the 100 μΩ internal resistance of its conductive path. The ACS772 achieve the highest performance in the CB package family with an accuracy of +/-2.1% over the lifetime of the IC from room to hot temperature. The 2.5 μs response time enables overcurrent fault detection in safety-critical applications while the Reinforced Galvanic Isolation reduces the bill of materials. It works off of a single 5 V supply (ACS772) or 3.3V (ACS773).

The ACS772 is ideal for Automotive application such as OBC, DC/DC converters and Inverter control as well as for industrial applications such as motor control, load detection and management and power supplies.

This sensor is provided in an Allegro custom CB package offering a very small form footprint, lower ICC and higher accuracy over current sensor modules offered by competing solutions. The ACS772 has a 2.5μs response time, which is the fastest response time IC ever offered in the custom Allegro CB package.

  • AEC-Q100 Grade 1 qualified
  • Typical of 2.5 μs output response time
  • 5 V supply operation
  • Ultra-low power loss: 100 μΩ internal conductor resistance
  • Reinforced galvanic isolation allows use in economical, high-side current sensing in high-voltage systems
  • 4800 Vrms dielectric strength certified under UL60950-1
  • Industry-leading noise performance with greatly improved bandwidth through proprietary amplifier and filter design techniques
  • Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side, high-voltage applications
  • Greatly improved total output error through digitally programmed and compensated gain and offset over the full operating temperature range
  • Small package size, with easy mounting capability
  • Monolithic Hall IC for high reliability
  • Output voltage proportional to AC or DC currents
  • Factory-trimmed for accuracy
  • Extremely stable output offset voltage

Target Applications

× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
ACS772ECB-200B-PFF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-200B-SMT-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-200U-PFF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-250B-PFF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-250B-PSF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-250B-PSS-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-250U-PFF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-300B-PFF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-400B-PFF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772ECB-400U-PSF-T 5-lead CB -40°C to 85°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ASEK772ECB-200B-T DEMO BOARD -40°C to 85°C No -- Contact your
local sales rep		 Check
Distributor Stock
ACS772KCB-150B-PFF-T 5-lead CB -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772KCB-150B-SMT-T 5-lead CB -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772KCB-150U-PFF-T 5-lead CB -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772KCB-150U-SMT-T 5-lead CB -40°C to 125°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ASEK772KCB-150B-T DEMO BOARD -40°C to 125°C No -- Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-050B-PFF-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-050B-PSF-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-050B-PSS-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-050B-SMT-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-050U-PFF-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-100B-PFF-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-100B-SMT-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ACS772LCB-100U-PFF-T 5-lead CB -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
ASEK772LCB-050B-T DEMO BOARD -40°C to 150°C No -- Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Current sensor CB package lead options

Packaging

This sensor is provided in an Allegro custom CB package offering a very small form footprint, lower ICC and higher accuracy over current sensor modules offered by competing solutions. The ACS772 has a 2.5μs response time, which is the fastest response time IC ever offered in the custom Allegro CB package.

CB PFF Package Documentation

CB PSF Package Documentation

CB PSS Package Documentation

CB SMT Package stp Model

Design Support Tools

ASEK772 Gerber Files

Models

ACS LTspice Library

Certificates of Compliance

20170510-E316429 Certificate of Compliance

CB Certificates

Certificate-CB-US-29755-M1-UL [CB]

Frequently Asked Questions

Current Sensor FAQ »

Allegro MicroSystems, LLC provides Gerber files for reference only. Any material, information, or instructions are provided AS IS without warranty of any kind. It is the responsibility of the User(s) to optimize any Printed Circuit Board (PCB) layout, as well as the selection of any components, for the specific application of the User(s).

Documentation & Resources

Application Note

Improved Performance and Features of Allegro’s Next Generation, High Power Density CB Package Current Sensors

This application note will describe the use of the new high current ACS772 Hall-effect current sensor integrated circuit (IC) from Allegro MicroSystems and will give an overview of its features and improvements from previous Allegro high-current sensors.

Learn More

Application Note

DC Current Capability and Fuse Characteristics of Current Sensor ICs with 50 to 200 A Measurement Capability

Allegro MicroSystems offers a wide range of current sensor IC solutions that fall into two main categories: ICs having an integrated current-carrying conductor and ICs designed to be used with an external magnetic core.

Learn More
