Current Sensor ICs
200kHz, High-Accuracy Current Sensor IC with 100µΩ Conductor for High-Current Applications
ACS772
Markets Served
The ACS772 provides precise and efficient current sensing for high-current, high-voltage applications, featuring a 200kHz bandwidth, fast response time (2.5µs), and reinforced galvanic isolation.
Product Details
Product Details
Top Features
- Ultra-low power loss: 100 μΩ internal conductor resistance
- High current sensing capability up to ±400A

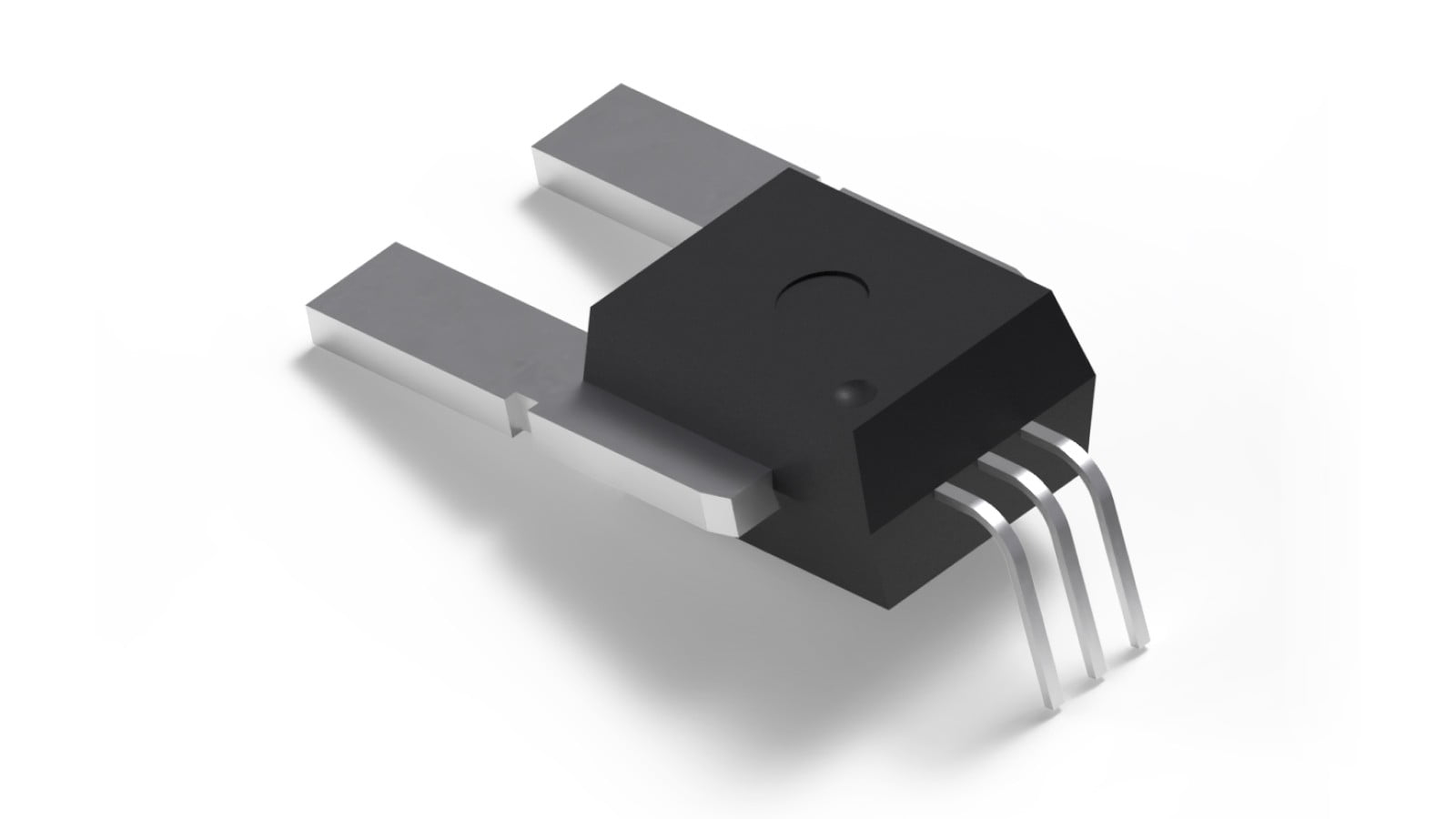

- Module CB package supports up to 475VRMS reinforced isolation
- 4800 VRMS withstand voltage (60 sec)
- 5V single supply operation
Part Number Specifications and Availability
